Description

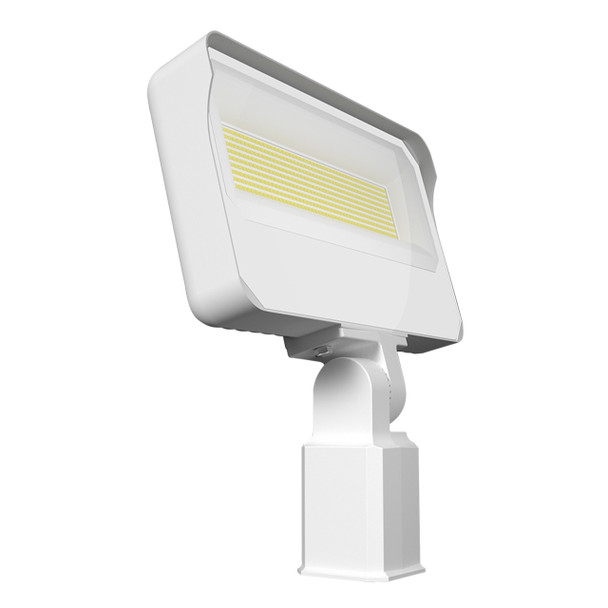

The X34 series are the latest ultra-economy floodlights from RAB Lighting. These fixtures come with field-adjustable color temperature and power capabilities. This allows you to adjust the fixtures light color and brightness to optimize its placement in your application. All X34 series fixtures are DLC listed, UL listed for wet locations, IP65 ingress protection rated, and RoHS-compliant. Additionally, these flood lights are designed to maximize versatility with their wide 7H X 7V NEMA distribution perfect for general-purpose applications.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 120 watt, 140 watt, and 160 watt settings.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
Precision die-cast aluminum housing with a tempered glass lens to reduce yellowing. Formulated finish for high durability and long-lasting color. Mercury and UV free. RoHS-compliant components. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
Warranty Information
View AllCloseAdditional Information
View AllCloseSpecifications
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
X34XXLW |
Model: |
X34XXLW |
Wattage: |
120/140/160 Watt |
Metal Halide Equivalent: |
750 Watt |
Lumens: |
17,458-24,168 |
Efficacy: |
133-165 lumens / Watt |
Color Temperature (CCT): |
3000/4000/5000 Kelvin |
Life Rating: |
100,000 Hours |
CRI: |
80+ |
Beam: |
Flood |
Light Distribution: |
7H x 7V NEMA |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
<15% |
Surge Protection: |
No |
Dimmable: |
Yes, 0-10V |
NEMA Receptable: |
No |
Photocontrol: |
Integrated, On / Off. |
Motion Sensor: |
No |
Housing Material: |
Aluminum |
Finish: |
White |
Lens Material: |
Tempered Glass |
IP Rating: |
IP65 |
Location Rating: |
Wet |
Mounting: |
Slipfitter |
Length: |
14 in. |
Width: |
12.25 in. |
Height: |
4 in. |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
No |
Title 20: |
No |
Title 24: |
No |
DLC: |
Yes |
DLC ID: |
S-AOKIJL |
Warranty: |
5-Year Manufacturer |
