RAB X17FA LED Flood Light - 35 Watt - Color Select - 5034 Lumens | 150 Watt MH Replacement - 120-277 Volt - 0-10V Dimmable - Dusk to Dawn - X17FA35

(No reviews yet) Write a Review
SKU:
26758
UPC:
192552003896
MPN:
X17FA35
Condition:
New
Shipping:
Free Shipping
  • RAB-X17FA35-image-01
  • RAB-X17FA35-image-02
  • RAB-X17FA35-image-03
  • RAB-X17FA35-image-04
$66.25
Frequently bought together:

Description

  • Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 3000K, 4000K, and 5000K color temperatures.
  • Robust 1/2" knuckle mount adjustable in 10° increments included.
  • Tempered glass lens to reduce yellowing.
  • Excellent replacement for 150 watt HID fixtures.
  • Long-life, high-efficacy LEDs with a 100,000 life hour rating.
  • 5-year, limited manufacturer warranty.

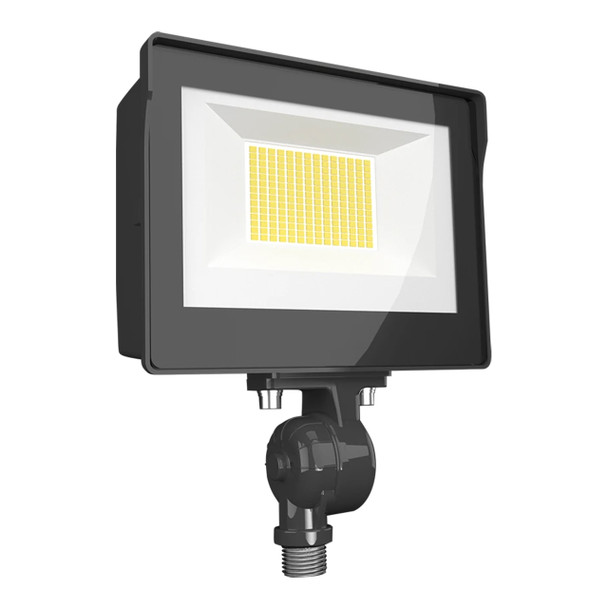

The X17 FAs all come with field-adjustable color temperature and include the added control of an integrated, selectable photocell. These flood lights are designed to maximize versatility, with a wide 7H x 7V distribution that makes them the optimal floodlight for a large variety of general-purpose applications. 0-10V dimming is standard on all models. Tight budgets don’t mean having to sacrifice on performance. The X17 XFU delivers 80+ CRI and an industry-leading efficacy of up to 145 lm/W. Its diffuse, uniform output comes without the flickering or humming often found in ultra-economy lighting. At 10 hours daily use, RAB LEDs are rated to last 27 years, dramatically reducing maintenance and re-lamping costs.

Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
Each fixture comes with an optional ON/OFF photocontrol that enables the installer to introduce fixture-level power control. Enabling the photocontrol causes the fixture to turn on during the night and off during the day. When disabled, the fixture is controlled by switched power.
Die-cast aluminum housing with a tempered glass lens to reduce yellowing. Formulated finish for high durability and long-lasting color. Mercury and UV free. RoHs-compliant components. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.

Listings & Certifications

UL

logo of the Underwriters Laboratory

RoHS

logo of RoHS

IP65

Ingress Protection 65 logo

DLC

logo of Design Lights Consortium Premium
View AllClose

Warranty Information

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose

Additional Information

Manufacturer:
RAB Lighting
Brand:
RAB
MPN:
X17FA35
Model:
X17FA35
Wattage:
35 Watt
Metal Halide Equivalent:
150 Watt
Lumens:
4,846-5,031
Efficacy:
137-148 lumens / Watt
Color Temperature (CCT):
3000/4000/5000 Kelvin
Life Rating:
100,000 Hours
CRI:
80+
Beam:
Flood
Light Distribution:
7H x 7V NEMA
Voltage:
120/208/240/277
Frequency:
50/60 Hz
Power Factor:
>0.90
THD:
<15%
Surge Protection:
6kV
Operating Temperature:
-40°F to 104°F
Dimmable:
Yes, 0-10V
NEMA Receptable:
No
Photocontrol:
Integrated, On / Off.
Motion Sensor:
No
Housing Material:
Aluminum
Finish:
Bronze
Lens Material:
Tempered Glass
IP Rating:
IP65
Location Rating:
Wet
Mounting:
Knuckle
Length:
9.19 in.
Width:
7.44 in.
Height:
2.69 in.
UL:
Yes
ETL:
No
RoHS:
Yes
Energy Star:
No
FCC:
Yes
Title 20:
No
Title 24:
No
DLC:
Yes
DLC ID:
PL2BE3TBJVAP
Warranty:
5-Year Manufacturer
