Description
- Field adjustable power switch to select between 15W, 20W, and 29W outputs.
- Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 3000K, 4000K, and 5000K color temperatures.
- Integrated photocontrol adds optional dusk-to-dawn functionality.
- Long-life, high-efficacy LEDs with a 100,000 life hour rating.
- Excellent replacement for 70 watt to 125 watt HID fixtures.
- Tempered glass lens to reduce yellowing.
- 5-year, limited manufacturer warranty.

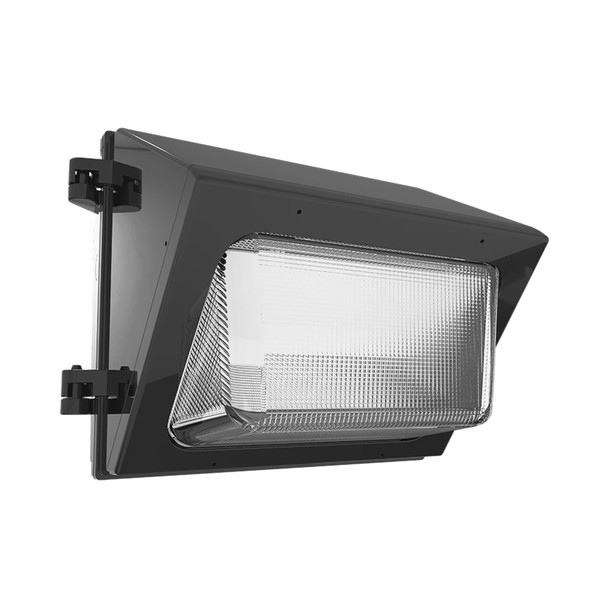

The RAB WP1 Series XFU 3-way adjustable wall pack comes with field-adjustable color temperature and wattage, and include the added control of an integrated, selectable photocell. 0-10V dimming down to 10% is standard on all models. Tight budgets donÂ’t mean having to sacrifice on performance. This family of fixtures deliver a super-high efficacy of up to 169 lm/W and 80+ CRI. Its output is smooth and quiet and comes without the flickering or humming often found in ultra-economy lighting. At 10 hours daily use, RAB LEDs are rated to last 27 years, dramatically reducing maintenance and re-lamping costs.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 15 watt, 20 watt, and 29 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
Each fixture comes with an optional ON/OFF photocontrol that enables the installer to introduce fixture-level power control. Enabling the photocontrol causes the fixture to turn on during the night and off during the day. When disabled, the fixture is controlled by switched power.
Die-cast aluminum housing with formulated finish for high durability and long-lasting color. Tempered glass lens to reduce yellowing. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
UL
DLC
IP65
RoHS
Warranty Information
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
WP1XFU29 |
Model: |
WP1XFU29 |
Wattage: |
15/20/29 Watt |
Metal Halide Equivalent: |
70-125 Watt |
Lumens: |
2,115-4,283 |
Efficacy: |
135-148 lumens / Watt |
Color Temperature (CCT): |
3000/4000/5000 Kelvin |
Life Rating: |
100,000 Hours |
CRI: |
80+ |
Light Distribution: |
Traditional Cutoff |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
<15% |
Surge Protection: |
N/A |
Dimmable: |
Yes, 0-10V |
Photocontrol: |
Integrated, On / Off. |
Housing Material: |
Aluminum |
Finish: |
Bronze |
Lens Material: |
Glass |
IP Rating: |
IP65 |
Location Rating: |
Wet |
Length: |
7.13 in. |
Width: |
10.75 in. |
Height: |
8.69 in. |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
Yes |
DLC: |
Yes |
DLC ID: |
PLOEPPLUEKB8 |
Dark Sky: |
No |
Warranty: |
5-Year Manufacturer |
