RAB SR4 - 4 ft. LED Strip Fixture - 6174 Lumens | Power and Color Select - 0-10 Volt Dimmable - 120-277 Volt - Surface Mount

(No reviews yet) Write a Review
SKU:
28646
UPC:
192552026352
MPN:
SR4
Condition:
New
Shipping:
Free Shipping

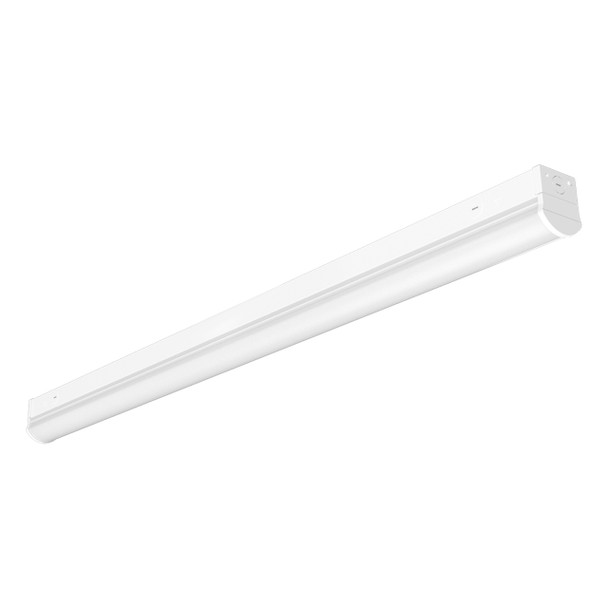

  • RAB-SR4-image-01
  • RAB-SR4-image-02
$54.60
Frequently bought together:

Description

  • Field adjustable power switch to select between 20W, 30W, and 40W outputs.
  • Comes with a field-adjustable CCT switch that allows you to choose between 3500K, 4000K, and 5000K color temperatures.
  • Surface mounting standard.
  • Dimmable by 0-10V standards.
  • Long-life, high-efficacy LEDs with a 50,000 life hour rating.
  • Excellent replacement for 2-lamp 32 Watt (T8) fluorescent fixtures.
  • 5-year, limited manufacturer warranty.

The SR strip light is designed with three field-adjustable wattages and CCTs (3500/4000/5000K) and is available in 2 ft (19/14/10W), 4 ft (40/30/20W), and 8 ft models (60/50/40W), making it extremely versatile for use in in various general-purpose and low-bay applications. The SR is designed for surface mounting but accessories are available for suspended mounting (V-hooks + 40” chains).

Adjust the wattage of the fixture to optimize maximum brightness. Select between 20 watt, 30 watt, and 40 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.

Listings & Certifications

UL

logo of the Underwriters Laboratory

RoHS

logo of RoHS

DLC

DLC logo
View AllClose

Warranty Information

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose

Additional Information

Manufacturer:
RAB Lighting
Brand:
RAB
MPN:
SR4
Model:
SR4
Wattage:
20/30/40 Watt
Equivalent:
(2) F32T8
Lumens:
3,155-6,174
Efficacy:
140-163 lumens / Watt
Color Temperature (CCT):
3500/4000/5000 Kelvin
Life Rating:
50,000 Hours
CRI:
80+
Voltage:
120/208/240/277
Frequency:
60 Hz
Power Factor:
>0.90
THD:
<15%
Surge Protection:
L-N 1KV, L/N-G 2KV
Operating Temperature:
-4°F to 122°F
Dimmable:
Yes, 0-10V
Options:
Standard
Mounting:
Surface
Housing Material:
Iron
Finish:
White
Lens Material:
Polycarbonate
IP Rating:
N/A
Location Rating:
Damp
Length:
47.24 in.
Width:
2.36 in.
Height:
2.79 in.
Weight:
4.5 lbs
UL:
Yes
ETL:
No
RoHS:
Yes
NSF:
No
Energy Star:
No
NEC:
No
FCC:
No
Title 20:
No
Title 24:
No
DLC:
Yes
DLC ID:
S-CDUVBW
Warranty:
5-Year Manufacturer
View AllClose
