Description
- Field adjustable power switch to select between 80W, 120W, and 160W outputs.
- Comes with a field-adjustable CCT switch that allows you to choose between 4000K and 5000K color temperatures.
- Fixture comes with a v-hook and chain for mounting.
- Compact low-profile design only 2.5" in height.
- Long-life, high-efficacy LEDs with a 100,000 life hour rating.
- Excellent replacement for 8-lamp (T5HO) fluorescent or 400 Watt HID fixtures.
- 5-year, limited manufacturer warranty.

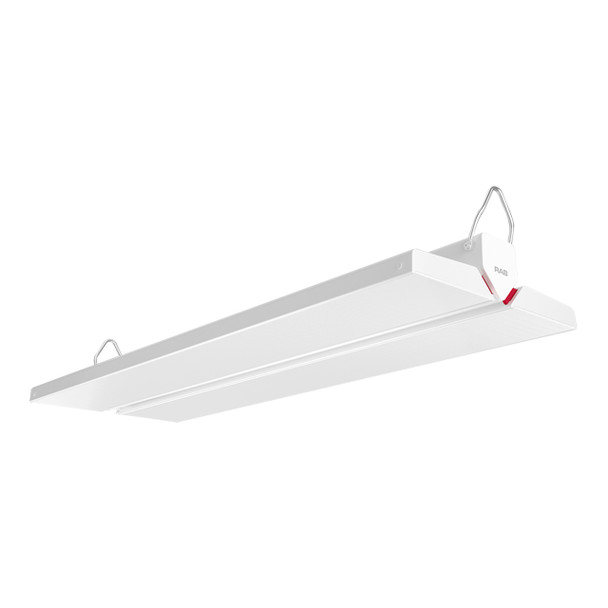

The RAB AEROBAY series has been reimagined to be more economical and versatile without compromising on quality. This new series has field-adjustable power and color temperature capabilities and are designed to replace up to 750W metal halide fixtures with a maximum mounting height of 50 ft! Additionally, these high bays have impact-resistance lens that eliminates the need for protective wire guard accessories making them ideal for commercial, industrial, or gymnasium settings. Each fixture comes standard with V-hooks for chain mounting but pendant mount kits are available.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 80 watt, 120 watt, and 160 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 4000K cool white and 5000K daylight color temperatures.
Aluminum housing with a finish formulated for high durability and long-lasting color. Includes an impact-resistant polycarbonate lens that eliminates the need for protective wire guard accessories. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
UL
RoHS
DLC
Warranty Information
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
ARS |
Model: |
ARS |
Wattage: |
80/120/160 Watt |
Equivalent: |
8-lamp (T5HO) / 400 Watt Metal Halide |
Lumens: |
11,855-22,991 |
Efficacy: |
143-164 lumens / Watt |
Color Temperature (CCT): |
4000/5000 Kelvin |
Life Rating: |
100,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
<10% |
Surge Protection: |
6kV |
Dimmable: |
Yes, 0-10V |
Options: |
Standard |
Mounting: |
V-Hook and Chains |
Housing Material: |
Aluminum |
Finish: |
White |
Lens Material: |
Polycarbonate |
IP Rating: |
N/A |
Location Rating: |
Damp |
Length: |
24 in. |
Width: |
10 in. |
Height: |
2.5 in. |
Weight: |
6.6 lbs |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
N/A |
DLC: |
Yes |
DLC ID: |
S-M11HJ7 |
Warranty: |
5-Year Manufacturer |
