Description

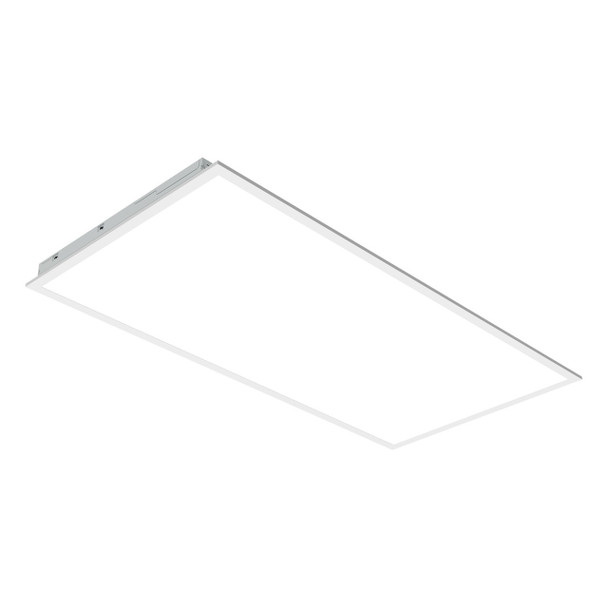

The Flat Panel Series is a family of highly efficient, versatile, configurable recessed fixtures, designed for recessed applications. The DLC Premium listed panels offer lumen output and color temperature selectability, making their versatility and simple aesthetic design perfect for educational, commercial and retail and applications.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 30 watt, 35 watt, and 45 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
Listings & Certifications
Warranty Information
View AllCloseAdditional Information
View AllCloseSpecifications
Manufacturer: |
Halco Lighting Technologies |
Brand: |
ProLED |
MPN: |
90520 |
Model: |
FPL-24-LS-CS-UNV |
Wattage: |
30/35/45 Watt |
Equivalent: |
4-lamp 32 Watt (T8) Watt |
Lumens: |
3,750-5,625 |
Efficacy: |
125 lumens / Watt |
Color Temperature (CCT): |
3500/4000/5000 Kelvin |
Life Rating: |
50,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
N/A |
Dimmable: |
Yes, 0-10V |
Options: |
Standard |
Mounting: |
T-Grid |
Housing Material: |
Steel/Aluminum |
Finish: |
White |
Lens Material: |
PMMA |
IP Rating: |
IP20 |
Location Rating: |
Damp |
Size: |
2 x 4 |
Length: |
47.75 in. |
Width: |
23.75 in. |
Height: |
1.63 in. |
UL: |
No |
ETL: |
Yes |
RoHS: |
Yes |
Energy Star: |
No |
Fire Rated: |
No |
FCC: |
Yes |
Air Tight: |
No |
NEC: |
No |
IC: |
Yes |
Title 20: |
No |
Title 24: |
Yes |
DLC: |
Yes |
DLC ID: |
S-GG0Y38 |
Warranty: |
5-Year Manufacturer |
