Description
- Field adjustable power switch to select between 12W, 20W, and 30W outputs.
- Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Ideal for new construction, remodel, and retrofit applications.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Pre-installed 18 inch five-wire flex conduit lead.
- 0-10VDC dimming standard.
- 5-year, limited manufacturer warranty.

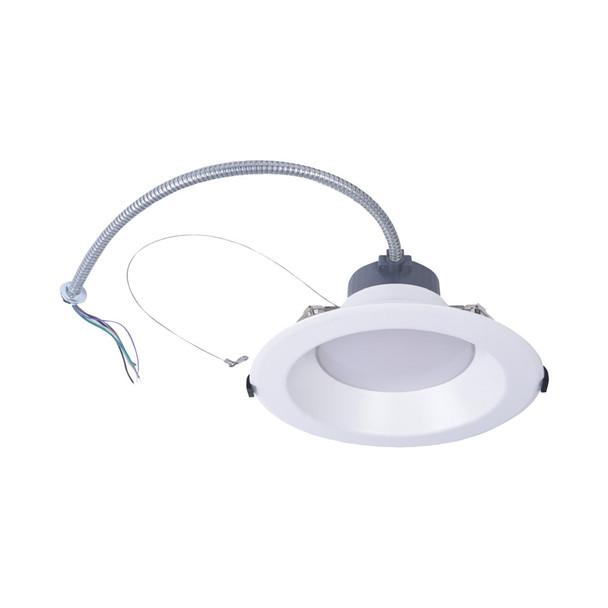

The ProLED Select Commercial Downlight Series is an energy efficient, premium performing solution for commercial lighting applications. This product features a internal driver compartment, an 18 inch pre installed conduit lead and robust universal spring clips which eliminate the need for a traditional recessed housing. The ProLED Select Commercial Downlight Series are Wattage and CCT selectable, 90+ CRI and are 0-10V dimmable which makes them the ideal all-in one solution for retrofit and new construction projects.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 12 watt, 20 watt, and 30 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
Aluminum housing with a smooth white trim paired with a diffused polycarbonate lens. Robust universal steel spring clips for easy installation. Pre-installed 18 inch. flexible conduit leads.
Listings & Certifications
ETL
Energy Star
Title 24
Warranty Information
Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco fixtures will be free from defect in material and or workmanship from the date of installation for the (5) years.
View AllClose
Additional Information
Manufacturer: |
Halco Lighting Technologies |
Brand: |
ProLED |
MPN: |
88986 |
Model: |
CDL8-WS-CS-U |
Wattage: |
12/20/30 Watt |
Equivalent: |
(1) 18W to 42W or (2) 26W CFL |
Lumens: |
1,084 to 2,640 |
Efficacy: |
81 to 99 lumens / Watt |
Color Temperature (CCT): |
2700/3000/3500/4000/5000 Kelvin |
Beam: |
Flood |
Life Rating: |
50,000 Hours |
CRI: |
90+ |
Size: |
8 inch |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
Dimmable: |
Yes, 0-10V |
Connection: |
18-inch Flexible Conduit |
Shape: |
Round |
Adjustable: |
No |
Housing Material: |
Aluminum |
Finish: |
White |
Lens Material: |
Polycarbonate |
Trim Color: |
White |
Trim Design: |
Smooth |
IP Rating: |
N/A |
Location Rating: |
Wet |
Mounting: |
Spring Clips |
Length: |
10.25 in. |
Width: |
10.25 in. |
Height: |
4.57 in. |
UL: |
No |
ETL: |
Yes |
RoHS: |
No |
Energy Star: |
Yes |
Fire Rated: |
No |
FCC: |
No |
Air Tight: |
N/A |
NEC: |
N/A |
IC: |
Yes |
Title 20: |
No |
Title 24: |
Yes |
DLC: |
No |
DLC ID: |
N/A |
Warranty: |
5-Year Manufacturer |
