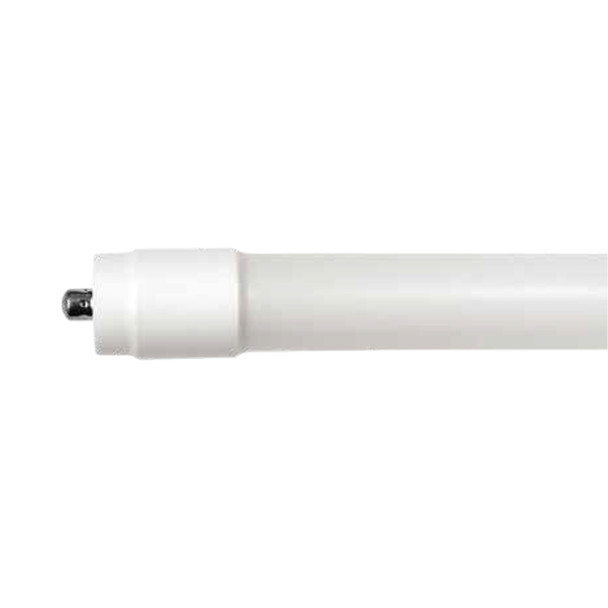

Description
- Retrofit for existing fluorescent lamps.
- Not compatible with ballasts, requires line voltage.
- Requires double ended power, can work with shunted or non-shunted sockets.
- Produces a 4000K cool white color.
- 50,000-hour long life rating.
- Backed by a 5-year limited manufacturer warranty.
Type B - Ballast Bypass: Type B LED lamps offer a cost-effective solution for your lighting needs. These lamps require bypassing or removing the ballast and rewiring them directly to line voltage. By eliminating the ballast, you not only enjoy improved energy efficiency but also reduce future maintenance costs. Upgrade your lighting system with Type B LED lamps and reap the benefits of long-term savings.
Double-Ended: This lamp requires double ended wiring to supply power. This means that the lamp can operate on shunted and non-shunted lampholders. Bulbs are typically marked with line (L) and neutral (N) labels near the pins to indicate how to wire the sockets.
Specifications
| SKU | 22949 |
| Manufacturer | Halco Lighting Technologies |
| Brand | ProLED |
| Manufacturer Part Number | 82875 |
| Model / Product Code | T896FR42/840/BYP2/SP/LED |
| UPC | 807154828753 |
| Light Technology | LED |
| Lamp Shape | T8 |
| Wattage | 42 W |
| Equivalent Wattage | 59 W / 75 W |
| Replaces | F96T8 / F96T12 |
| Base Code | Fa8 |
| Base Type | Single Pin |
| Voltage | 120/208/240/277 V |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Operation | UL Type B |
| Color Temperature | 4000K |
| CRI | 80+ |
| Lumens | 5500 |
| Lumens per Watt | 130 |
| Beam Angle | 270° |
| Life Hours | 50000 |
| Nominal Length | 8 ft. |
| Length | 96 in. |
| Diameter | 1 in. |
| Fixture Rating | Enclosed |
| Location Rating | Damp |
| Power Factor | >0.9 |
| THD | <25% |
| Wiring | Double Ended |
| Compatible Sockets | Shunted or Non-Shunted |
| Material | Coated Glass |
| Lens | Frosted |
| Dimmable | No |
| Dimming Type | N/A |
| UL | Yes |
| ETL | Yes |
| NSF | Yes |
| RoHS | Yes |
| FCC | N/A |
| Energy Star | No |
| DLC | Yes |
| DLC ID | PL34KBUQPWNM |
| Warranty | 5-Year |
Warranty Information
Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco lamps will be free from defect in material and or workmanship from the date of installation for (5) years based on the product's L70 rated life.
View AllClose
Additional Information
Lamp Shape: |
T8 |
Operation Type: |
Type B (Bypass) |
Wiring Method: |
Double Ended |
Wattage: |
42 W |
Length: |
96 in. |
Lumens: |
5500 |
Lumens per Watt: |
130 |
Life Hours: |
50000 |
CRI: |
80+ |
Color Temperature (CCT): |
4000K |
Voltage: |
120/208/240/277 V |
Base Type: |
Single Pin |
Dimmable: |
No |
Equivalent: |
75 W |
