Halco ProLED 36103 LED Linear High Bay - 240, 280 or 320 Watt

45,237 Lumens - 750W MH Replacement - Tunable White - 120-277 Volt - V-Hook Mount - CLHB-4-WS-CS-U
(No reviews yet) Write a Review
SKU:17807
UPC:807154361038
MPN:36103
Condition:New
Shipping:Free Shipping
    • Field adjustable power switch to select between 240W, 280W, and 320W outputs.
    • Comes with a field-adjustable CCT switch that allows you to choose between 4000K and 5000K color temperatures.
    • Fixture comes with a v-hook and chain for mounting.
    • Compact design only 1.88" in height.
    • Long-life, high-efficacy LEDs with a 50,000 life hour rating.
    • Excellent replacement for 8-lamp (T5HO) fluorescent or 1000 Watt HID fixtures.
    • 5-year, limited manufacturer warranty.

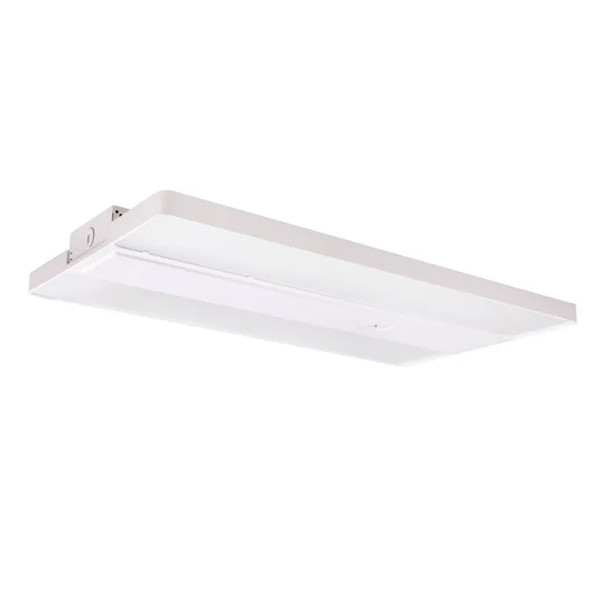

    • Halco-36103-CLHB-4-WS-CS-U-image-01
    • Halco-36103-CLHB-4-WS-CS-U-image-02
    • Halco-36103-CLHB-4-WS-CS-U-image-03
    $189.00
    Frequently bought together:

    Description

    The Compact Linear High Bay (CLHB) is designed to meet the needs of the budget-conscious contractor. CLHB boasts robust performance in a smaller footprint to save space and cut down installation time. Designed with a durable die-cast aluminum housing and matte acrylic lens to eliminate glare, the CLHB is a reliable solution for light-duty industrial applications like warehouses, without sacrificing quality needed in retail stores, gymnasiums, and other large indoor spaces.

    Adjust the wattage of the fixture to optimize maximum brightness. Select between 240 watt, 280 watt, and 320 watt settings. Can be dimmed down for further control with 0-10V dimming.
    Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 4000K cool white and 5000K daylight color temperatures.
    Durable aluminum housing with a white finish. Acrylic lens for diffuse and even lighting. Rated lifespan of 50,000 hours backed by a 5-year limited manufacturer warranty.

    Listings & Certifications

    UL

    logo of the Underwriters Laboratory

    RoHS

    logo of RoHS

    IP20

    Ingress Protection 20 logo

    DLC

    DLC logo
    View AllClose

    Warranty Information

    View AllClose

    Additional Information

    View AllClose

    Specifications

    Manufacturer:
    Halco Lighting Technologies
    Brand:
    ProLED
    MPN:
    36103
    Model:
    CLHB-4-WS-CS-U
    Wattage:
    240/280/320 Watt
    Equivalent:
    8-Lamp T5HO / 1000 Watt Metal Halide
    Lumens:
    32,450-45,237
    Efficacy:
    140-143 lumens / Watt
    Color Temperature (CCT):
    4000/5000 Kelvin
    Life Rating:
    50,000 Hours
    CRI:
    80+
    Voltage:
    120/208/240/277
    Frequency:
    50/60 Hz
    Power Factor:
    >0.90
    THD:
    N/A
    Surge Protection:
    N/A
    Operating Temperature:
    -40°F to 122°F
    Dimmable:
    Yes, 0-10V
    Options:
    Standard
    Mounting:
    V-Hook and Chains
    Housing Material:
    Aluminum
    Finish:
    White
    Lens Material:
    Acrylic
    IP Rating:
    IP20
    Location Rating:
    Damp
    Length:
    23.04 in.
    Width:
    12.60 in.
    Height:
    1.88 in.
    Weight:
    10.14 lbs
    UL:
    Yes
    ETL:
    No
    RoHS:
    Yes
    Energy Star:
    No
    FCC:
    Yes
    DLC:
    Yes
    DLC ID:
    S-5CVDNW
    Warranty:
    5-Year Manufacturer

    Warranty

    Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco fixtures will be free from defect in material and or workmanship from the date of installation for the (5) years.
