Halco 30281 LED Linear High Bay - 70, 90 or 110 Watt | 14,850 Lumens - 5000K - 120-277 Volt - V-Hook Mount - LHB-1-WS-50-U

(No reviews yet) Write a Review
SKU:
27673
UPC:
807154302819
MPN:
30281
Condition:
New
Shipping:
Free Shipping

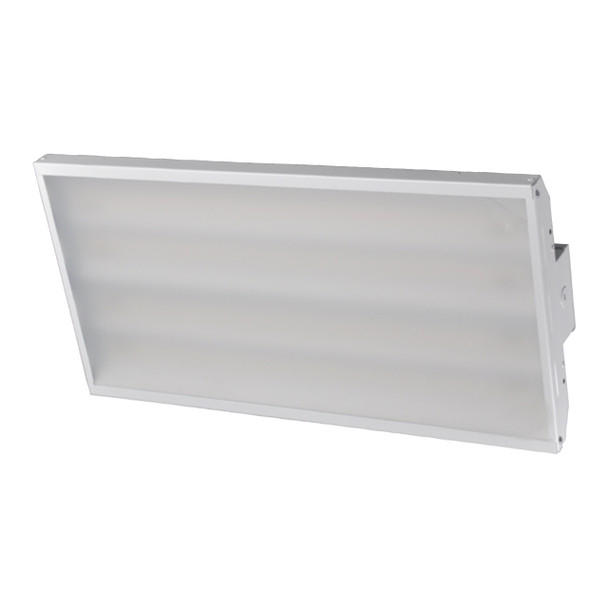

  • Halco-30281-LHB-1-WS-50-U-image-01
  • Halco-30281-LHB-1-WS-50-U-image-02
$84.50
Frequently bought together:

Description

  • Field adjustable power switch to select between 70W, 90W, and 110W outputs.
  • Produces a bright daylight light with a 5000K color temperature.
  • Fixture comes with a v-hook and chain for mounting.
  • Built in 6kV surge protection.
  • Long-life, high-efficacy LEDs with a 100,000 life hour rating.
  • Excellent replacement for 4-lamp (T8) fluorescent or 250 Watt HID fixtures.
  • 5-year, limited manufacturer warranty.

The ProLED Select Linear High Bay Series is a long life and energy efficient replacement for existing linear fluorescent or HID installations. Ideal for highbay mounting heights, the ProLED Select Linear HighBay delivers instant-on capabilities, uniform illumination, and reduced maintenance costs. Meeting specified lumen levels is simple with ProLED Select wattage selectability. The ProLED Select LHB offers 11 different lumen packages in only 4 SKUs. Applications include warehouse industrial store retail or gym ceiling lighting.

Adjust the wattage of the fixture to optimize maximum brightness. Select between 70 watt, 90 watt, and 110 watt settings. Can be dimmed down for further control with 0-10V dimming.
Durable steel housing with a white finish. Polycarbonate frosted lens for diffuse and even lighting. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.

Listings & Certifications

UL

logo of the Underwriters Laboratory

RoHS

logo of RoHS

DLC

DLC logo
View AllClose

Warranty Information

Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco lamps will be free from defect in material and or workmanship from the date of installation for (5) years based on the product's L70 rated life.
View AllClose

Additional Information

Manufacturer:
Halco Lighting Technologies
Brand:
ProLED
MPN:
30281
Model:
LHB-1-WS-50-U
Wattage:
70/90/110 Watt
Equivalent:
4-lamp (T8) / 250 Watt Metal Halide
Lumens:
9,800-14,850
Efficacy:
135-140 lumens / Watt
Color Temperature (CCT):
5000 Kelvin
Life Rating:
100,000 Hours
CRI:
80+
Voltage:
120/208/240/277
Frequency:
50/60 Hz
Power Factor:
>0.90
THD:
N/A
Surge Protection:
6kV
Operating Temperature:
-40°F to 131°F
Dimmable:
Yes, 0-10V
Options:
Standard
Mounting:
V-Hook and Chains
Housing Material:
Steel
Finish:
White
Lens Material:
Polycarbonate
IP Rating:
N/A
Location Rating:
Damp
Length:
24.6 in.
Width:
12.6 in.
Height:
3.6 in.
Weight:
16 lbs
UL:
Yes
ETL:
No
RoHS:
Yes
Energy Star:
No
FCC:
Yes
DLC:
Yes
DLC ID:
PL08R233AANQ
Warranty:
5-Year Manufacturer
