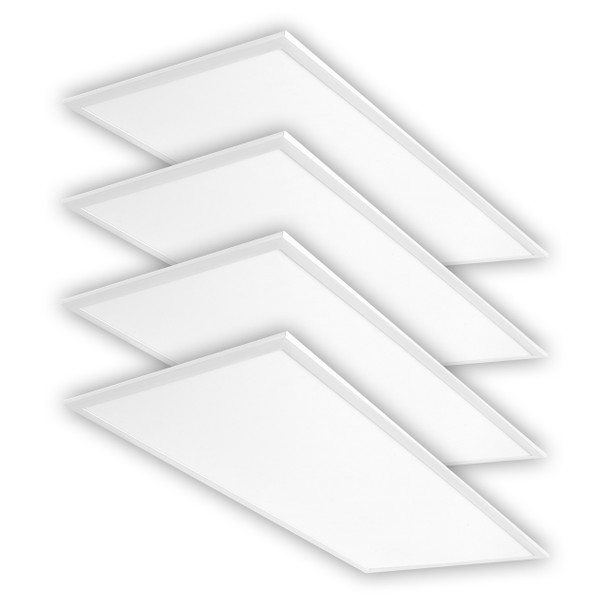

Halco 2 x 4 - Selectable Wattage - 5500 Lumens - Tunable White | 0-10V Dimmable - Edge-Lit LED Flat Panel Fixture

(No reviews yet) Write a Review
SKU:
30783
UPC:
807154103324
MPN:
10332
Condition:
New
Shipping:
Free Shipping
$93.60
Frequently bought together:

Description

  • Field adjustable power switch to select between 30W, 35W, and 45W outputs.
  • Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 3500K, 4000K, and 5000K color temperatures.
  • Dimmable by low voltage 0-10V standards.
  • Long-life, high-efficacy LEDs with a 50,000 life hour rating.
  • Excellent replacement for 4-lamp 32 Watt (T8) fluorescent fixtures.
  • 5-year, limited manufacturer warranty.

HalcoÂ’s ProLED Select EdgeLit Panel is the ideal solution where lighting preferences vary from space to space. The EdgeLit Panel Series is Field Selectable, allowing the installer to select both the preferred light output and color temperature (via DIP Switch) on the product driver box. The benefit of this is that one luminaire can replace 9 SKUs of our regular EdgeLit Panels. Fewer luminaires means less inventory and more efficient job site. At Halco, we only use the highest quality material in our EdgeLit Panel Series design, eliminating the need to worry about yellowing, glare, or drooping after the product is installed. When applications like healthcare facilities call for multiple lumen packages and color temperatures, the ProLED Select EdgeLit Panel Series is the ideal solution to simplify BOMs and increase customer satisfaction.

Adjust the wattage of the fixture to optimize maximum brightness. Select between 30 watt, 35 watt, and 45 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.

Listings & Certifications

ETL

logo of ETL listed

IP40

Ingress Protection 40 logo

RoHS

logo of RoHS

DLC

logo of Design Lights Consortium
View AllClose

Additional Information

Manufacturer:
Halco Lighting Technologies
Brand:
ProLED
MPN:
10332
Model:
24FSEPL/8DU
Wattage:
30/35/45 Watt
Equivalent:
4-lamp 32 Watt (T8) Watt
Lumens:
3,300-5,500
Efficacy:
110-122 lumens / Watt
Color Temperature (CCT):
3500/4000/5000 Kelvin
Life Rating:
50,000 Hours
CRI:
80+
Voltage:
120/208/240/277
Frequency:
50/60 Hz
Power Factor:
>0.90
THD:
N/A
Operating Temperature:
-40°F to 104°F
Dimmable:
Yes, 0-10V
Options:
Standard
Mounting:
T-Grid
Housing Material:
Steel
Finish:
White
Lens Material:
PMMA
IP Rating:
IP40
Location Rating:
Damp
Size:
2 x 4
Length:
47.63 in.
Width:
23.63 in.
Height:
1.75 in.
UL:
No
ETL:
Yes
RoHS:
Yes
Energy Star:
No
Fire Rated:
No
FCC:
Yes
Air Tight:
No
NEC:
No
IC:
Yes
Title 20:
No
Title 24:
No
DLC:
Yes
DLC ID:
PLOGTL8MBCTC
Warranty:
5-Year Manufacturer
