Description
- Field adjustable power switch to select between 30W, 40W, and 50W outputs.
- Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 3500K, 4000K, and 5000K color temperatures.
- Comes standard with 0-10V dimming driver for your complete control of your lighting scene.
- Low-profile design is IC rated for direct contact with ceiling insulation, and is also Chicago Plenum (CCEA) compliant.
- Designed for use in T-bar grids, but compatible with surface and recessed applications.
- Pre-installed emergency battery-backup.
- Other mounting options sold separately.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Excellent replacement for 4-lamp 32 Watt (T8) fluorescent fixtures.
- 5-year, limited manufacturer warranty.

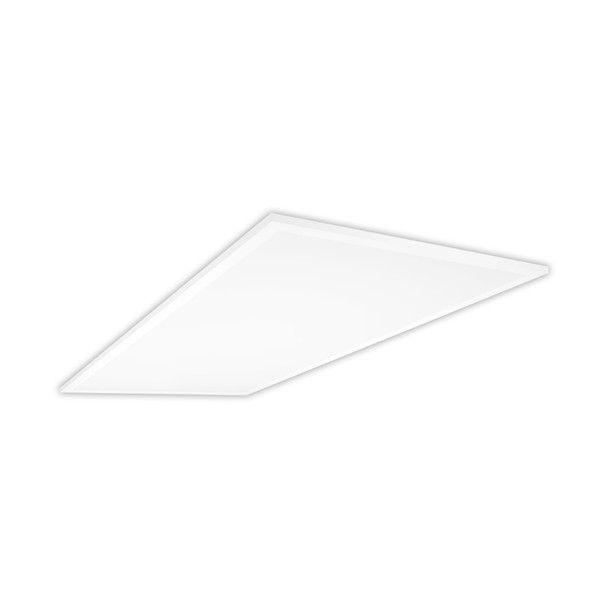

The RAB T34 is an ultra-economy low profile backlit LED flat panel light. These lights have fully adjustable color temperatures and power settings. Choose between 3500K, 4000K and 5000K CCTs using the field adjustable switch. The T34s low-profile design is IC rated for direct contact with ceiling insulation and is also Chicago Plenum (CCEA) compliant. A lightweight, frosted, polystyrene lens diffuses light, making the T34 FA and T34 FAHE ideal for areas that require uniform, glare-free distribution.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 30 watt, 40 watt, and 50 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
The T34 FA's low-profile design is IC rated for direct contact with ceiling insulation, and is also Chicago Plenum (CCEA) compliant. Integral earthquake clips secure the panel to T-bars and won't get lost during installation.

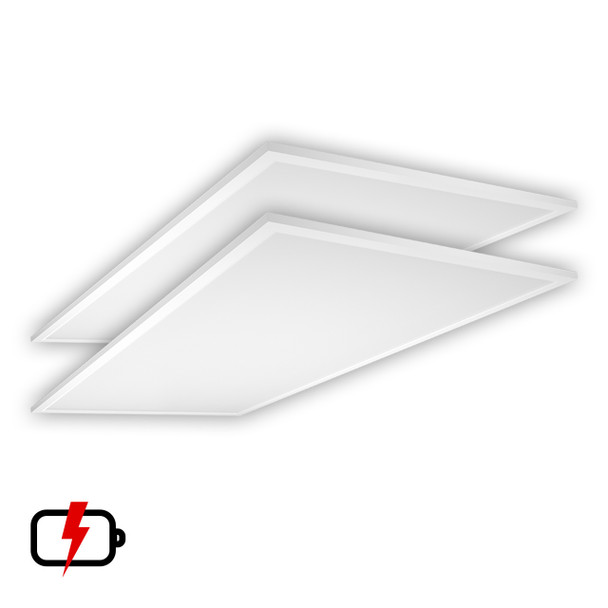

Fixture comes with a factory installed emergency backup battery that provides 90 minutes of emergency illumination in the case of power failure. Wired for 120-277 Volt.
Listings & Certifications
UL
RoHS
Battery Backup
DLC
Warranty Information
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
T34FA-2X4/E |
Model: |
T34FA-2X4/E |
Wattage: |
30/40/50 Watt |
Equivalent: |
4-lamp 32 Watt (T8) Watt |
Lumens: |
3,833-6,027 |
Efficacy: |
120-139 lumens / Watt |
Color Temperature (CCT): |
3500/4000/5000 Kelvin |
Life Rating: |
50,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
<10% |
Dimmable: |
Yes, 0-10V |
Options: |
Battery Backup |
Mounting: |
T-Grid |
Housing Material: |
Plastic Frame, Steel Back |
Finish: |
White |
Lens Material: |
Polystyrene |
IP Rating: |
N/A |
Location Rating: |
Damp |
Size: |
2 x 4 |
Length: |
47.75 in. |
Width: |
23.75 in. |
Height: |
1.5 in. |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
Fire Rated: |
No |
FCC: |
No |
Air Tight: |
No |
NEC: |
No |
IC: |
Yes |
Title 20: |
No |
Title 24: |
No |
DLC: |
Yes |
DLC ID: |
S-4LATM2 |
Warranty: |
5-Year Manufacturer |
