Description
- Built-in emergency 5W LiFePO4 battery backup with easily accessible test button.
- Field adjustable power switch to select between 10W, 12W, and 17W outputs.
- Comes with a field-adjustable CCT switch that allows you to choose between 3000K, 3500K, and 4000K color temperatures.
- Ideal for new construction, remodel, and retrofit applications.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Utilizes a remote driver with built-in junction box and quick disconnect.
- 0-10VDC dimming standard.
- 5-year, limited manufacturer warranty.
The Advanta line of downlights is designed for commercial needs and feature an integrated driver, deep recessed look, and available interchangeable trims. Replacing a legacy fixture is easy: Advanta fits into the existing frame kit, ties into the junction box, and provides dimmable, energy-saving LED light. They're ideal for both new construction and retrofit. Advanta is available in both integral driver and remote driver (Advanta RMT) options for installation flexibility. The remote driver option is perfect for narrow plenums or obstructed spaces. Advanta is also equipped with Keystone's Power Select and Color Select technology, reducing SKUs and allowing installers to choose among selectable wattages and selectable color temperatures.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 10 watt, 12 watt, and 17 watt settings. Can be dimmed down for further control with 0-10V dimming.
Complete, pre-wired emergency downlight solution—including test button—removes all typical guesswork, uncertainty, and complex installation issues from battery backup downlight applications.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 3500K neutral white, and 4000K cool white color temperatures.
Insulated ceilings aren't a problem for Advanta LED recessed downlights. With airtight, Type IC-rated construction, they can be used safely in areas in contact with fiberglass or cellulose insulation.

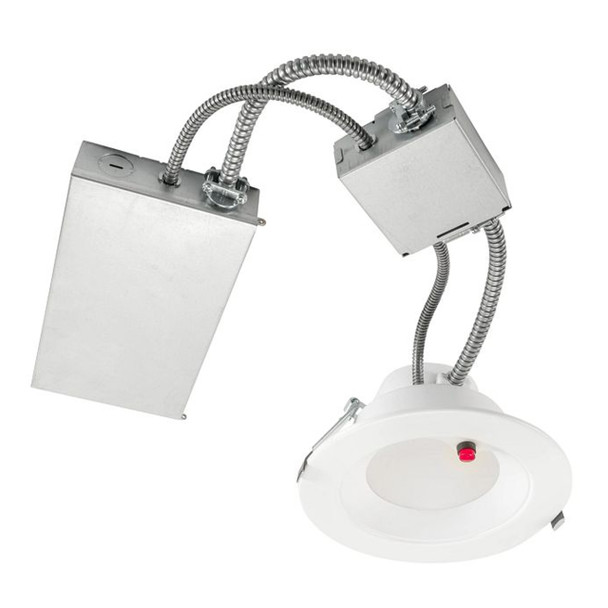

AdvantaEMRG features a remote Keystone LED dimming driver with a built-in junction box and quick disconnect, so there’s no need for a traditional multi-piece fixture setup. The installation saves time, and energy efficiency saves money.
Listings & Certifications
ETL
Energy Star
RoHS
Battery Backup
Warranty Information
Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called “Keystone Technologies”) warrants to the purchaser of its LED fixtures, retrofit kits, and light engines (hereinafter called “lighting components”) to be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for time periods outlined below and subject to the terms and conditions herein. This warranty applies to fixtures that are operated within usage limit, 8,760 hours per year for a total of 5 years. If fixtures fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement fixture (but no labor allowance) or issue a credit for future purchase. This warranty is not applicable if the lighting component is not installed in accordance with the National Electric Code, the Standards for Safety of Underwriters Laboratories, Inc., Standards for the American National Standards Institute, or the Canadian Standards Association. This warranty is also not applicable if the lighting component is not installed according to Keystone Technologies instructions or recommendations or if the product has been exposed to abnormal operating conditions including excessive temperatures. For more information please go to www.keystonetech.com
View AllClose
Additional Information
Manufacturer: |
Keystone Technologies |
Brand / Product Series: |
Keystone |
MPN: |
KT-RDLED17PS-6A-9CSE-VDIM-EM5 |
Model: |
KT-RDLED17PS-6A-9CSE-VDIM-EM5 |
Wattage: |
10/12/17 Watt |
Equivalent: |
(1) 18W to 32W CFL |
Lumens: |
720 to 1,330 |
Efficacy: |
72-78 lumens / Watt |
Color Temperature (CCT): |
3000/3500/4000 Kelvin |
Beam: |
Flood |
Life Rating: |
50,000 Hours |
CRI: |
90+ |
Size: |
6 inch |
Voltage: |
120/208/240/277 |
Frequency: |
N/A |
Power Factor: |
>0.90 |
Dimmable: |
Yes, 0-10V |
Connection: |
Remote Junction Box |
Shape: |
Round |
Adjustable: |
No |
Housing Material: |
N/A |
Finish: |
White |
Lens Material: |
Plastic |
Trim Color: |
White |
Trim Design: |
Smooth |
IP Rating: |
N/A |
Location Rating: |
Damp |
Mounting: |
Spring Clips |
Length: |
8.25 in. |
Width: |
8.25 in. |
Height: |
3.94 in. |
UL: |
No |
ETL: |
Yes |
RoHS: |
Yes |
Energy Star: |
Yes |
Fire Rated: |
No |
FCC: |
No |
Air Tight: |
Yes |
NEC: |
N/A |
IC: |
Yes |
Title 20: |
No |
Title 24: |
No |
DLC: |
No |
DLC ID: |
N/A |
Warranty: |
5-Year Manufacturer |
