Description
- Field adjustable power switch to select between 58W, 85W, and 113W outputs.
- Comes with a field-adjustable CCT switch allows you to choose between 3000K, 4000K, and 5000K color temperatures.
- Long-life, high-efficacy LEDs with a 100,000 life hour rating.
- Dark Sky friendly full cutoff light distribution.
- Excellent replacement for 350 watt to 750 watt HID fixtures.
- 0-10VDC dimming standard.
- Integrated photocontrol adds optional dusk-to-dawn functionality.
- 5-year, limited manufacturer warranty.

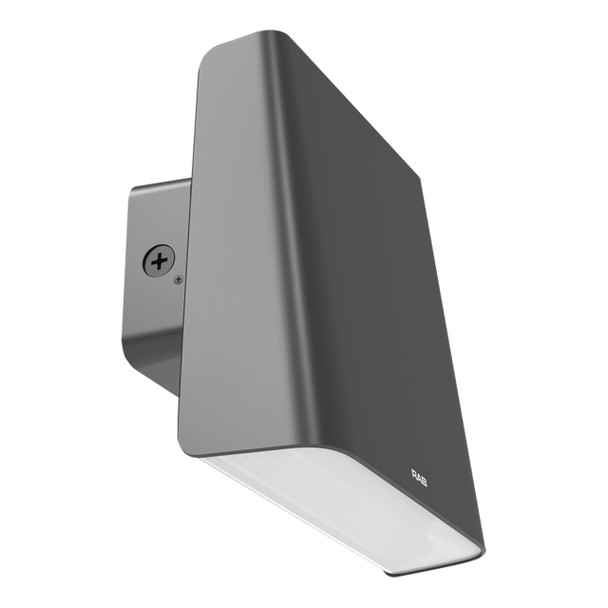

The reimagined LPACK is a fraction of the size of its predecessor. The more sustainable design weighs 40% less, has a significantly lower profile, and is over 3” narrower for a sleeker aesthetic that delivers even more light output! We’ve also added selectable wattage and color temperature to the LPACK, eliminating the need to choose between various, static-wattage models. One SKU does it all! An on/off photocell is also included for additional flexibility. The LPACK is a full cutoff, fully shielded wall pack that delivers environment-friendly lighting which minimizes glare, reduces light trespass, and doesn’t pollute the night sky.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 58 watt, 85 watt, and 113 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
Each fixture comes with an optional ON/OFF photocontrol that enables the installer to introduce fixture-level power control. Enabling the photocontrol causes the fixture to turn on during the night and off during the day. When disabled, the fixture is controlled by switched power.
The redesign of the wall pack also includes a unique cleat on the mounting bracket and a hinged wall box that allows for simple, quick, hands-free wiring. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
UL
DLC
RoHS
Warranty Information
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
WPLEDL |
Model: |
WPLEDL |
Wattage: |
58/85/113 Watt |
Metal Halide Equivalent: |
350-750 Watt |
Lumens: |
7,533-14,968 |
Efficacy: |
119-143 lumens / Watt |
Color Temperature (CCT): |
3000/4000/5000 Kelvin |
Life Rating: |
100,000 Hours |
CRI: |
80+ |
Light Distribution: |
Full Cutoff |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
<15% |
Surge Protection: |
Line-Line: 6kV; Line - GND:10kV |
Dimmable: |
Yes, 0-10V |
Photocontrol: |
Integrated, On / Off. |
Housing Material: |
Aluminum |
Finish: |
Bronze |
Lens Material: |
Acrylic |
IP Rating: |
N/A |
Location Rating: |
Wet |
Length: |
6.46 in. |
Width: |
9.75 in. |
Height: |
10.25 in. |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
No |
DLC: |
Yes |
DLC ID: |
S-7SSG86 |
Dark Sky: |
Yes |
Warranty: |
5-Year Manufacturer |
