Description
- Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Excellent replacement for 120 watt incandescent fixtures.
- Low profile design and remote driver enclosure ideal for shallow plenums.
- Spring loaded universal mounting slips ensure secure fit to ceiling.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Dimmable down to 10% on compatible TRIAC/ELV systems.
- 5-year, limited manufacturer warranty.

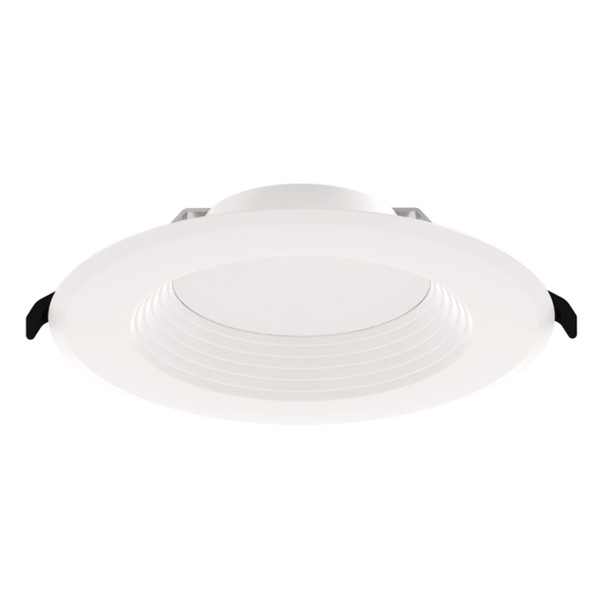

The RAB field-adjustable deep regress wafers are available in both 4” (13W) and 6” (15W) models, the deep regress design of these low-profile wafers delivers maximized glare control. The remote driver makes installations super easy, whether it’s in retrofit or new construction applications. All models are airtight rated and suitable for use in dry, damp and wet locations, making them perfect for both indoor and outdoor use.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
Installations are super flexible with an off-board driver that minimizes installation height, maximizes thermal management, and eliminates the need for a traditional recessed housing or "can". A plenum-rated cable connector links the downlight module to the remote driver, and then the module snaps into place with the adjustable, spring-loaded retention clips.
The wafer's spring-loaded clips are adjustable and designed to be used with various drywall thicknesses. Their long length makes them easy to install, and their heavy-duty design makes sure they stay in place. Wafers even include a large flange to compensate for holes that are cut incorrectly.
Listings & Certifications
UL
Energy Star
RoHS
NEC
Title 24
Warranty Information
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
WFD6B |
Model: |
WFD6B |
Wattage: |
15 Watt |
Equivalent: |
120 Watt |
Lumens: |
1,685 |
Efficacy: |
119 lumens / Watt |
Color Temperature (CCT): |
2700/3000/3500/4000/5000 Kelvin |
Beam: |
90° |
Life Rating: |
50,000 Hours |
CRI: |
90+ |
Size: |
6 inch |
Voltage: |
120 |
Frequency: |
60 Hz |
Power Factor: |
>0.90 |
Dimmable: |
Yes, 120V |
Connection: |
Remote Junction Box |
Shape: |
Round |
Adjustable: |
No |
Housing Material: |
Metal |
Finish: |
White |
Lens Material: |
Polycarbonate |
Trim Color: |
White |
Trim Design: |
Baffle |
IP Rating: |
N/A |
Location Rating: |
Wet |
Mounting: |
Spring Clips |
Length: |
7.38 in. |
Width: |
7.38 in. |
Height: |
1.69 in. |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
Yes |
Fire Rated: |
No |
FCC: |
Yes |
Air Tight: |
Yes |
NEC: |
Yes |
IC: |
Yes |
Title 20: |
No |
Title 24: |
Yes |
DLC: |
No |
DLC ID: |
N/A |
Warranty: |
5-Year Manufacturer |
