Description
- Retrofit for existing fluorescent lamps.
- Not compatible with ballasts, requires line voltage.
- Requires double ended power, can work with shunted or non-shunted sockets.

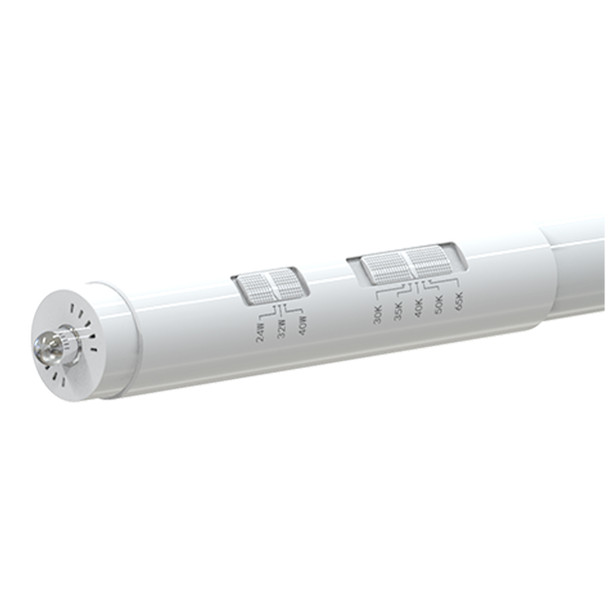

- Tunable color temperature: 3000K, 3500K, 4000K, 5000K, 6500K
- 50,000-hour long life rating.
- Backed by a 5-year limited manufacturer warranty.
Type B - Ballast Bypass: Type B LED lamps offer a cost-effective solution for your lighting needs. These lamps require bypassing or removing the ballast and rewiring them directly to line voltage. By eliminating the ballast, you not only enjoy improved energy efficiency but also reduce future maintenance costs. Upgrade your lighting system with Type B LED lamps and reap the benefits of long-term savings.
Double-Ended: This lamp requires double ended wiring to supply power. This means that the lamp can operate on shunted and non-shunted lampholders. Bulbs are typically marked with line (L) and neutral (N) labels near the pins to indicate how to wire the sockets.
Specifications
| SKU | 29529 |
| Manufacturer | RAB Lighting |
| Brand | RAB |
| Manufacturer Part Number | T8-96G-DE-BYP |
| Model / Product Code | T8-96G-DE-BYP |
| UPC | 192552031011 |
| Light Technology | LED |
| Lamp Shape | T8 |
| Wattage | 24 W, 32 W, or 40 W |
| Equivalent Wattage | 59 W / 86 W / 96 W |
| Replaces | F96T8 / F96T12 |
| Base Code | Fa8 & R17d |
| Base Type | Single Pin & High Output |
| Voltage | 120/208/240/277 V |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Operation | UL Type B |
| Color Temperature | 3000K, 3500K, 4000K, 5000K, or 6500K |
| CRI | 80+ |
| Lumens | 3418 to 5481 |
| Lumens per Watt | 148 |
| Beam Angle | 210° |
| Life Hours | 50000 |
| Nominal Length | 8 ft. |
| Length | 93.81 in. |
| Diameter | 1.07 in. |
| Fixture Rating | Enclosed |
| Location Rating | Damp |
| Power Factor | >0.9 |
| THD | <25% |
| Wiring | Double Ended |
| Compatible Sockets | Shunted or Non-Shunted |
| Material | Glass |
| Lens | Frosted |
| Dimmable | Yes |
| Dimming Type | Not recommended |
| UL | Yes |
| ETL | No |
| NSF | Yes |
| RoHS | Yes |
| FCC | Yes |
| Energy Star | No |
| DLC | Yes |
| DLC ID | S-SMHL8F |
| Warranty | 5-Year |
Warranty Information
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Lamp Shape: |
T8 |
Operation Type: |
Type B (Bypass) |
Wiring Method: |
Double Ended |
Wattage: |
24 W, 32 W, or 40 W |
Length: |
93.82 in. |
Lumens: |
5481 |
Lumens per Watt: |
5481 |
Life Hours: |
50000 |
CRI: |
80+ |
Color Temperature (CCT): |
3000K, 3500K, 4000K, 5000K, or 6500K |
Voltage: |
120/208/240/277 V |
Base Type: |
Interchangeable (Fa8 & R17d) |
Dimmable: |
Yes |
Equivalent: |
96 W |
