Description
- Direct replacement for existing fluorescent lamps.
- Works off existing ballast and sockets.
- No re-wiring of the existing fixture is needed.
- Produces a 3500K neutral white color.
- 50,000-hour long life rating.
- Backed by a 5-year limited manufacturer warranty.
Type A - Plug and Play: Type A LED lamps are the perfect choice for quick and effortless installation. These lamps are designed to directly replace traditional lamps, eliminating the need for any rewiring. With Type A LED lamps, you can easily upgrade your lighting system without any hassle. Simply plug them in and enjoy enhanced lighting efficiency. It is important to verify ballast compatibility, please refer to any attached documentation or consult with a sales associate.
No Wiring Needed: This lamps name is a plug and play style lamp and does not require you to re-wire your fixture or change the sockets - if they are not burned out.
Specifications
| SKU | 28732 |
| Manufacturer | RAB Lighting |
| Brand | RAB |

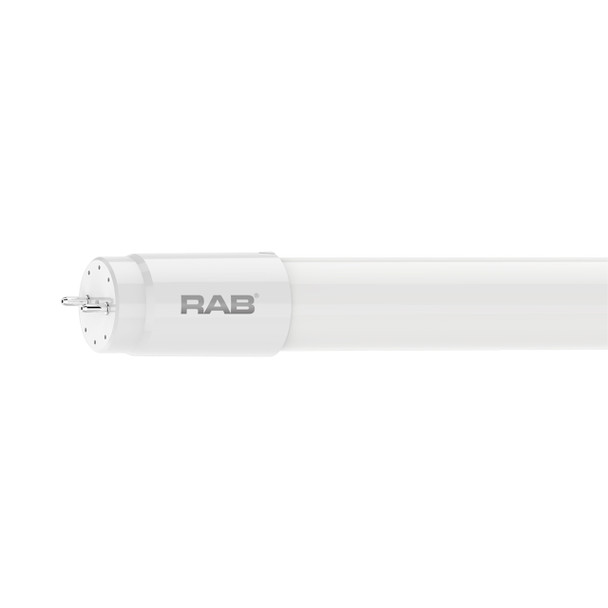

| Manufacturer Part Number | T8-9.5-48G-835-DIR |
| Model / Product Code | T10368(T8-9.5-48G-835-DIR) |
| UPC | 192552015776 |
| Light Technology | LED |
| Lamp Shape | T8 |
| Wattage | 9.5 W |
| Equivalent Wattage | 32 W |
| Replaces | F32T8 |
| Base Code | G13 |
| Base Type | Medium Bi-Pin |
| Voltage | Ballast Dependent |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Operation | UL Type A |
| Color Temperature | 3500K |
| CRI | 80+ |
| Lumens | 1650 |
| Lumens per Watt | 173 |
| Beam Angle | 160° |
| Life Hours | 50000 |
| Nominal Length | 4 ft. |
| Length | 47.75 in |
| Diameter | 1.13 in. |
| Fixture Rating | Enclosed |
| Location Rating | Damp |
| Power Factor | >0.9 |
| THD | <20% |
| Wiring | No Rewiring Needed |
| Compatible Sockets | Existing |
| Material | Glass |
| Lens | Frosted |
| Dimmable | Yes |
| Dimming Type | 0-10V |
| UL | Yes |
| ETL | No |
| NSF | Yes |
| RoHS | N/A |
| FCC | Yes |
| Energy Star | No |
| DLC | Yes |
| DLC ID | S-YP8UE3 |
| Warranty | 5-Year |
Warranty Information
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Lamp Shape: |
T8 |
Operation Type: |
Type A (Plug n Play) |
Wiring Method: |
No Rewiring Needed |
Wattage: |
9.5 W |
Length: |
47.75 in |
Lumens: |
1650 |
Lumens per Watt: |
173 |
Life Hours: |
50000 |
CRI: |
80+ |
Color Temperature (CCT): |
3500K |
Voltage: |
Ballast Dependent |
Base Type: |
Medium Bi-Pin |
Dimmable: |
Yes |
Equivalent: |
32 W |
