Description
- Comes with a field-adjustable CCT switch allows you to choose between 3000K, 4000K, and 5000K color temperatures.
- Long-life, high-efficacy LEDs with a 100,000 life hour rating.
- Adjustable head from 0° (full cutoff) to 90° in 15° increments.
- Dark Sky friendly when at 0°.
- Excellent replacement for 70 watt HID fixtures.
- 0-10VDC dimming standard.
- Integrated photocontrol adds optional dusk-to-dawn functionality.
- 5-year, limited manufacturer warranty.

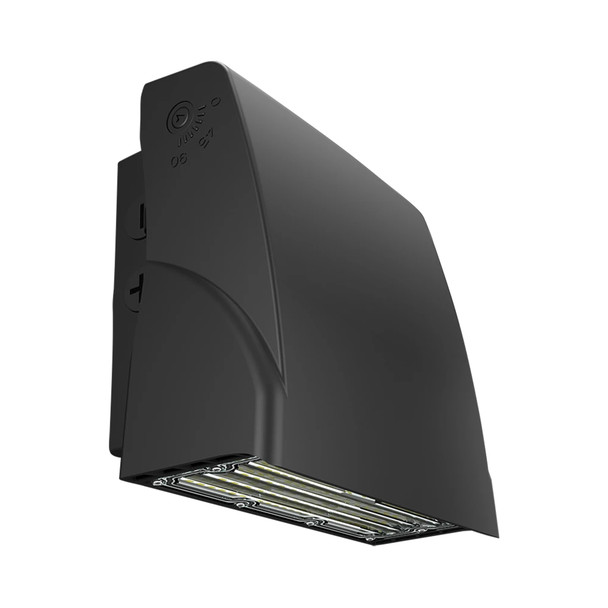

The RAB SLIM17 is the ultimate economy LED wall pack. These fixtures are fully adjustable in both color temperature and cut off. Choose between 3000K, 4000K, and 5000K CCT's in the field with an adjustable switch. Adjust the fixture in 15° increments so you may point the light where you need it. If kept at 0° setting, the fixture remains Dark Sky friendly. These LED fixtures have up to 134 lumens per watt and have an L70 rating of 100,000 life hours. DLC Premium and UL listed.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
Each fixture comes with an optional ON/OFF photocontrol that enables the installer to introduce fixture-level power control. Enabling the photocontrol causes the fixture to turn on during the night and off during the day. When disabled, the fixture is controlled by switched power.
The SLIM17 comes in 15W and 30W models and has fully adjustable cut off, from full cutoff up to 90° in 15° increments, so you can put the light where you need it. When mounted and kept at its 0° setting, the SLIM FA is a full cutoff wall pack and is Dark Sky friendly.
Built with a precision die-cast aluminum housing and door frame. Formulated finish for high durability and long-lasting color. Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
UL
DLC
IP65
RoHS
Warranty Information
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
SLIM17FA15ADJ |
Model: |
SLIM17FA15ADJ |
Wattage: |
15 Watt |
Metal Halide Equivalent: |
70 Watt |
Lumens: |
1,761-1,904 |
Efficacy: |
124-130 lumens / Watt |
Color Temperature (CCT): |
3000/4000/5000 Kelvin |
Life Rating: |
100,000 Hours |
CRI: |
70+ |
Light Distribution: |
Adjustable Cutoff |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
N/A |
Surge Protection: |
L-N:2.5kV, L/N-GND:2.5kV |
Dimmable: |
Yes, 0-10V |
Photocontrol: |
Integrated, On / Off. |
Housing Material: |
Aluminum |
Finish: |
Bronze |
Lens Material: |
Polycarbonate |
IP Rating: |
IP65 |
Location Rating: |
Wet |
Length: |
4.5 in. |
Width: |
7.17 in. |
Height: |
7.38 in. |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
Yes |
DLC: |
Yes |
DLC ID: |
PL0MVJOV62Q3 |
Dark Sky: |
Yes |
Warranty: |
5-Year Manufacturer |
