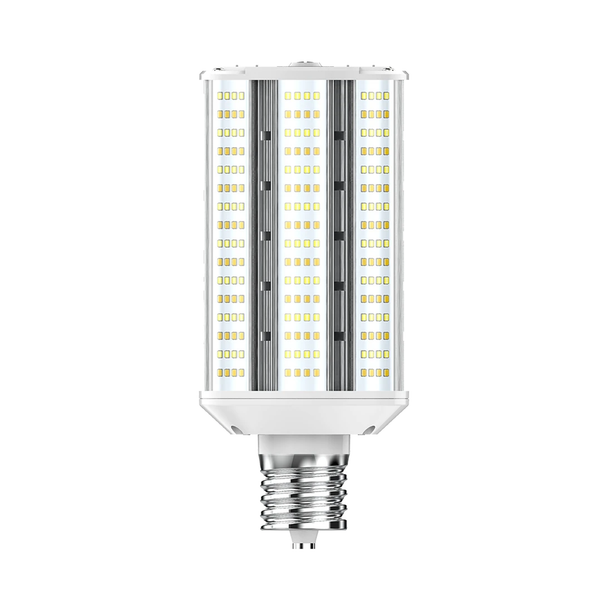

RAB Corn Bulb - 6400 Lumens - 20, 30 or 40 Watt - Replaces up to 200W | 3000K, 4000K or 5000K - 120-277 Volt - Mogul Base - Ballast Bypass - HIDFA-40S-H-EX39-8CCT-BYP

(No reviews yet) Write a Review
SKU:
27735
UPC:
192552005135
MPN:
HIDFA-40S-H-EX39-8CCT-BYP
Condition:
New
Shipping:
Free Shipping
  • RAB Corn Bulb - 6400 Lumens - 20, 30 or 40 Watt - Replaces up to 200W | 3000K, 4000K or 5000K - 120-277 Volt - Mogul Base - Ballast Bypass - HIDFA-40S-H-EX39-8CCT-BYP
  • RAB Corn Bulb - 6400 Lumens - 20, 30 or 40 Watt - Replaces up to 200W | 3000K, 4000K or 5000K - 120-277 Volt - Mogul Base - Ballast Bypass - HIDFA-40S-H-EX39-8CCT-BYP
  • RAB Corn Bulb - 6400 Lumens - 20, 30 or 40 Watt - Replaces up to 200W | 3000K, 4000K or 5000K - 120-277 Volt - Mogul Base - Ballast Bypass - HIDFA-40S-H-EX39-8CCT-BYP
This item is currently on backorder. Please call for availability 1-844-357-8897.
Frequently bought together:

Description

Description

Retrofit up to a 200 watt HID lamp fixture with these smart and selectable LED corn cobs from RAB Lighting. RAB’s field adjustable series are wattage and color temperature selectable. Selectable wattage allows you to toggle between three different lumen outputs. Adjusting illumination can allow for installation flexibility, and gives you the option to maximize energy savings or light output. Field-adjustable CCT offers three color temperatures to choose from, giving you the flexibility and control you need in the field both during and after installation. Each LED wall pack lamp has a rotatable base that allows you to direct light where you need it. These lamps also come with a support stand in the box that protects against strain on the socket. LED wall pack lamps can take the heat by using active cooling technology. Their design allows air to pass through and cool things down without the use of an on-board fan that can fail prematurely.

Key Features

  • Replaces traditional metal halide or high pressure sodium HID lamp
  • Adjustable wattage and CCT allow for in-field customization
  • Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Rated for use in enclosed fixtures in dry or damp locations
  • Rotatable base up to 350°
  • 4kV surge protection built in
  • 50,000-Hour lifespan
  • Environmentally friendly, no mercury used
  • UL Listed, DLC Listed (select models)
  • Dimmable
  • 5-Year, No-Compromise Warranty

Specifications

SKU 27735
Brand RAB
MPN H10064
Model HIDFA-40S-H-EX39-8CCT-BYP
UPC 192552005135
Wattage 20/30/40 W
Equivalent 100/150/200 W
Replaces MH100/MH150/MH200
Lumens 3200/4800/6400 lumens
Efficacy 160 lumens / W
Color Temperature 3000K/4000K/5000K
Color Rendering 80+
Beam Angle 180°
Base Type Mogul
Base Code EX39
Power Factor >0.9
Operating Temperature -22°F to 140°F
Life Rating 50,000 hours
Operation Type UL Type B - Ballast Bypass
Voltage 120-277 V
Location Rating Damp / Enclosed
UL Yes
ETL No
RoHS Yes
DLC 5.1
DLC ID PN0Q7CNW
FCC Yes
Energy Star No
View AllClose

Warranty Information

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose

Additional Information

Lamp Shape:
Shoebox Retrofit
Operation Type:
Type B (Bypass)
Wattage:
20/30/40 W
Lumens:
6400
Lumens per Watt:
160
Life Hours:
50,000
Color Temperature (CCT):
Tunable White
Voltage:
120/208/240/277
CRI:
80+
Base Type:
Mogul
Dimmable:
Yes
Equivalent:
200 W
