Description
- Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Gimbal models have a 32° tilt and 360° rotation for directional lighting control.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Spring loaded retention clips mount directly to ceiling preventing the need for housing.
- Dimmable down to 10% on compatible TRIAC/ELV systems.
- 5-year, limited manufacturer warranty.

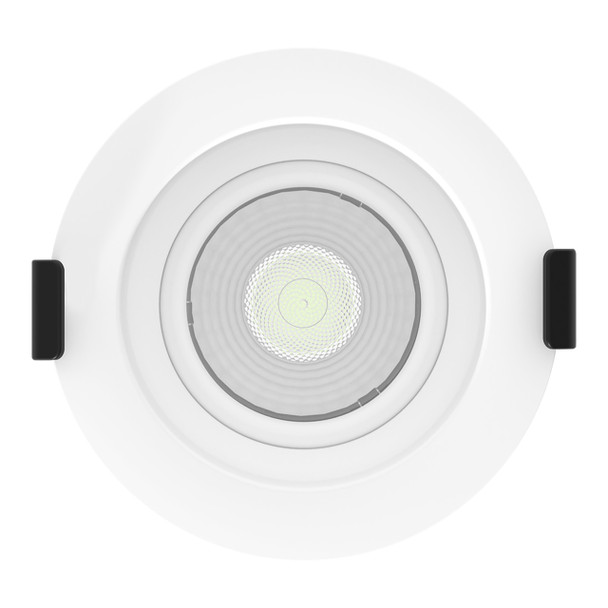

RAB Lightings canless gimbal and recessed series of LED downlights are small, versatile and economical downlight fixtures. These fixtures have spring-loaded retention tabs that allow installation directly into drywall ceilings of varying thickness. All models are IC rated for direct contact with insulation and suitable for use in wet locations allowing use for both indoor and outdoor use. Each fixture comes with a remote electrical box that houses the LED driver allowing you install the fixtures into shallow plenums. Each downlight is backed by 5-year no compromise warranty.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
Installations are really flexible with an off-board driver that minimizes installation height, maximizes thermal management, and eliminates the need for a recessed housing. A plenum-rated cable connector links the downlight module to the remote driver, and then the module snaps into place with the spring-loaded retention tabs. The super-thin design allows for these products to be installed inside shallow plenums.
Metal housing with a smooth white finish and an impact polycarbonate lens. Long-life rating of 50,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
UL
ETL
Energy Star
RoHS
NEC
Title 24
Warranty Information
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
GR3 |
Model: |
GR3 |
Wattage: |
9 Watt |
Equivalent: |
65 Watt |
Lumens: |
647 to 765 |
Efficacy: |
76 to 91 lumens / Watt |
Color Temperature (CCT): |
2700/3000/3500/4000/5000 Kelvin |
Beam: |
38° |
Life Rating: |
50,000 Hours |
CRI: |
90+ |
Size: |
3 inch |
Voltage: |
120 |
Frequency: |
60 Hz |
Power Factor: |
>0.90 |
Dimmable: |
Yes, 120V |
Connection: |
Remote Junction Box |
Shape: |
Round |
Adjustable: |
Gimbal |
Housing Material: |
Metal |
Finish: |
White |
Lens Material: |
Polycarbonate |
Trim Color: |
White |
Trim Design: |
Smooth |
IP Rating: |
N/A |
Location Rating: |
Wet |
Mounting: |
Spring Clips |
Length: |
3.57 in. |
Width: |
3.57 in. |
Height: |
2.5 in. |
UL: |
Yes |
ETL: |
Yes |
RoHS: |
Yes |
Energy Star: |
Yes |
Fire Rated: |
No |
FCC: |
Yes |
Air Tight: |
Yes |
NEC: |
Yes |
IC: |
Yes |
Title 20: |
No |
Title 24: |
Yes |
DLC: |
No |
DLC ID: |
N/A |
Warranty: |
5-Year Manufacturer |
