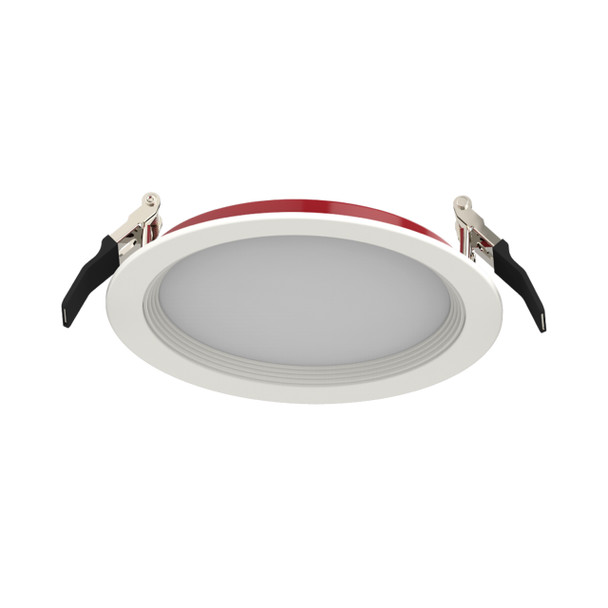

RAB FWAFER6B 6 in. Canless Fire Rated LED Wafer

Baffle Trim - 15 Watt - 1330 Lumens - Color Adjust - 120 Volt - Remote Driver and Junction Box
(No reviews yet) Write a Review
SKU:12508
UPC:192552028813
MPN:FWAFER6B
Condition:New
Shipping:Free Shipping
    • Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
    • All FWAFER models have been tested to UL 263 and ASTM E119 standards for 2-hour fire resistance.
    • Long-life, high-efficacy LEDs with a 50,000 life hour rating.
    • Ideal for new construction or retrofit applications, no recessed housing or junction box required.
    • 5-year, limited manufacturer warranty.
    • RAB-FWAFER6B-image-01
    • RAB-FWAFER6B-image-02
    • RAB-FWAFER6B-image-03
    • RAB-FWAFER6B-image-04
    • RAB-EXTCBL-FA-6-image-01
    • RAB-EXTCBL-FA-12-image-01
    • RAB-EXTCBL-FA-20-image-01
    $40.00
    Frequently bought together:

    Description

    Introducing the FWAFER series - field-adjustable, fire-rated LED downlights by RAB Lighting. These innovative downlights are not only certified to withstand intense conditions, complying with UL 263/ASTM E119 for a 2-hour fire test rating, but they also offer unparalleled flexibility in lighting design. With 5 selectable color temperatures (2700/3000/3500/4000/5000K), you can effortlessly adjust the ambiance to suit any environment. Whether you're working on new construction or retrofit applications, these downlights, available in both 4" (11W) and 6" (15W) sizes, with options for smooth and baffle trims, are the perfect fit.

    The FWAFER series boasts a 50,000-hour LED lifespan, ensuring longevity and consistent performance. The off-board, remote driver design not only minimizes installation height but also maximizes thermal management, eliminating the need for traditional recessed housing. The edge-lit design of these downlights ensures minimal glare, providing a wider, smoother light distribution. They are also dimmable with most common TRIAC forward and reverse phase cut dimmers (120V) and are Title 24 compliant. With a 90 CRI, these downlights offer accurate color rendering, making them ideal for commercial applications where color precision is paramount.

    All FWAFER models have been tested to UL 263 and ASTM E119 standards for 2-hour fire resistance.
    Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
    Installations are super flexible with an off-board driver that minimizes installation height, maximizes thermal management, and eliminates the need for a traditional recessed housing or "can". A plenum-rated cable connector links the downlight module to the remote driver, and then the module snaps into place with the adjustable, spring-loaded retention clips.
    Back-lit downlights deliver a more vertical distribution, putting the light directly on the work surface. Edge-lit wafers use a reflective panel to disperse a wider, smoother distribution that reduces glare.

    Listings & Certifications

    UL

    logo of the Underwriters Laboratory

    Fire Resistant

    fire resistant logo

    Energy Star

    Energy Star logo

    RoHS

    logo of RoHS

    Title 24

    California Title 24 compliant logo
    View AllClose

    Warranty Information

    View AllClose

    Additional Information

    View AllClose

    Specifications

    Manufacturer:
    RAB Lighting
    Brand:
    RAB
    MPN:
    FWAFER6B
    Model:
    FWAFER6B
    Wattage:
    15 Watt
    Equivalent:
    75 Watt
    Lumens:
    1330
    Efficacy:
    89 lumens / Watt
    Color Temperature (CCT):
    2700/3000/3500/4000/5000 Kelvin
    Beam:
    90°
    Life Rating:
    50,000 Hours
    CRI:
    90+
    Size:
    6 inch
    Voltage:
    120
    Frequency:
    60 Hz
    Power Factor:
    >0.90
    Operating Temperature:
    -4°F to 104°F
    Dimmable:
    Yes, 120V
    Connection:
    Remote Junction Box
    Shape:
    Round
    Adjustable:
    No
    Housing Material:
    Metal
    Finish:
    White
    Lens Material:
    Polycarbonate
    Trim Color:
    White
    Trim Design:
    Baffle
    IP Rating:
    N/A
    Location Rating:
    Wet
    Mounting:
    Spring Clips
    Length:
    6.82 in.
    Width:
    6.82 in.
    Height:
    2 in.
    UL:
    Yes
    ETL:
    No
    RoHS:
    Yes
    Energy Star:
    Yes
    Fire Rated:
    Yes
    FCC:
    Yes
    Air Tight:
    Yes
    NEC:
    No
    IC:
    Yes
    Title 20:
    No
    Title 24:
    Yes
    DLC:
    No
    DLC ID:
    N/A
    Warranty:
    5-Year Manufacturer

    Warranty

    RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
