Description
- Produces a bright soft white light at a 3000K color temperature.
- Comes standard with 0-10V dimming driver for your complete control of your lighting scene.
- Designed for use in T-bar grids, but compatible with surface, pendant, and recessed applications.
- Other mounting options sold separately.
- Long-life, high-efficacy LEDs with a 60,000 life hour rating.
- Excellent replacement for 2-lamp 32 Watt (T8) fluorescent fixtures.
- 5-year, limited manufacturer warranty.

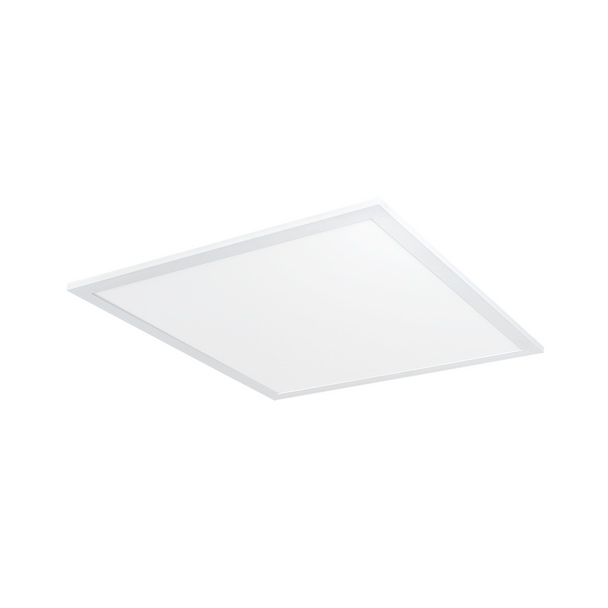

The EZPAN Edge-lit series of LED panel lights offers smooth and uniform light from edge to edge, providing a clean, modern look. Designed for installation in drop ceilings, the EZPAN can also be mounted using optional surface, pendant, or recessed (dry wall) kits. The EZPAN comes in 1x4, 2x2, and 2x4 sizes, each with three different power packages. With a height just under 2", the EZPAN is perfect for shallow plenums. It features an NEC-compliant junction box with flying leads for simple wiring and integral T-bar clips for secure attachment to standard T-bar systems. Though primarily designed for T-bar grids, the three available mounting kits offer flexibility for various applications. The edge-lit design ensures smooth, uniform light distribution, while the lens provides diffuse illumination ideal for glare-free environments. With efficacies up to 140 lm/W, the EZPAN exceeds standard DLC requirements for LED panels and includes a 0-10V dimming driver for complete lighting control.
Listings & Certifications
UL
RoHS
NEC
DLC
Additional Information
Manufacturer: |
RAB Lighting |
Brand: |
RAB |
MPN: |
EZPAN2X2-30Y/D10 |
Model: |
EZPAN2X2-30Y/D10 |
Wattage: |
30 Watt |
Equivalent: |
2-lamp 32 Watt (T8) Watt |
Lumens: |
3695 |
Efficacy: |
116 lumens / Watt |
Color Temperature (CCT): |
3000 Kelvin |
Life Rating: |
60,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
<10% |
Dimmable: |
Yes, 0-10V |
Options: |
Standard |
Mounting: |
T-Grid |
Housing Material: |
Aluminum |
Finish: |
White |
Lens Material: |
Polystyrene |
IP Rating: |
N/A |
Location Rating: |
Damp |
Size: |
2 x 2 |
Length: |
23.74 in. |
Width: |
23.74 in. |
Height: |
1.63. in. |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
Fire Rated: |
No |
FCC: |
No |
Air Tight: |
No |
NEC: |
Yes |
IC: |
Yes |
Title 20: |
No |
Title 24: |
No |
DLC: |
Yes |
DLC ID: |
PUBCAK46 |
Warranty: |
5-Year Manufacturer |
