Keystone Circa - 6 in. Gimbal Downlight - 12W - Color Select | 1050 Lumens - High CRI - 120 Volt - Dimmable - White Smooth Trim - 110° Beam Spread - KT-WDLED12-6A-9CSF-FDIM-G

(No reviews yet) Write a Review
SKU:
31263
UPC:
843654154664
MPN:
KT-WDLED12-6A-9CSF-FDIM-G
Condition:
New
Shipping:
Calculated at Checkout
  • Keystone-KT-WDLED12-6A-9CSF-FDIM-G-image-01
  • Keystone-KT-WDLED12-6A-9CSF-FDIM-G-image-02
  • Keystone-KT-WDLED12-6A-9CSF-FDIM-G-image-03
  • Keystone-KT-WDLED12-6A-9CSF-FDIM-G-image-04
$31.73
Frequently bought together:

Description

  • Comes with a field-adjustable CCT switch that allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
  • Gimbal models have a 25° vertical tilt and 355° horizontal rotation for directional lighting control.
  • Long-life, high-efficacy LEDs with a 50,000 life hour rating.
  • Spring loaded retention clips mount directly to ceiling preventing the need for housing.
  • Dimmable down to 10% on compatible TRIAC systems.
  • 5-year, limited manufacturer warranty.

With a remote driver, a built-in junction box, and a height of just over a half-inch, Circa downlights will fit almost anywhere you want to place them—and blend in beautifully, whether in new construction, remodel, or retrofit applications. Circa installs in minutes. There’s no need for a traditional, multi-piece fixture setup: just cut out your ceiling hole, remove the junction box knockouts, connect the wiring, attach the LED driver connection to the fixture housing, and you’re set. The shallow design makes it placement a snap, even in tight spaces. Customize the light with Power and Color Select technology. With 5 color temperatures and, on select models, 3 power outputs—all adjustable at the touch of a switch—you can pick the brightness and color temperature that meets your needs. It’s 15 fixtures in 1, meaning fewer SKUs and greater versatility. Circa wafer LED downlights are just right for your space with three available sizes and three different styles — slim, slight regressed, and gimbal.

Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.

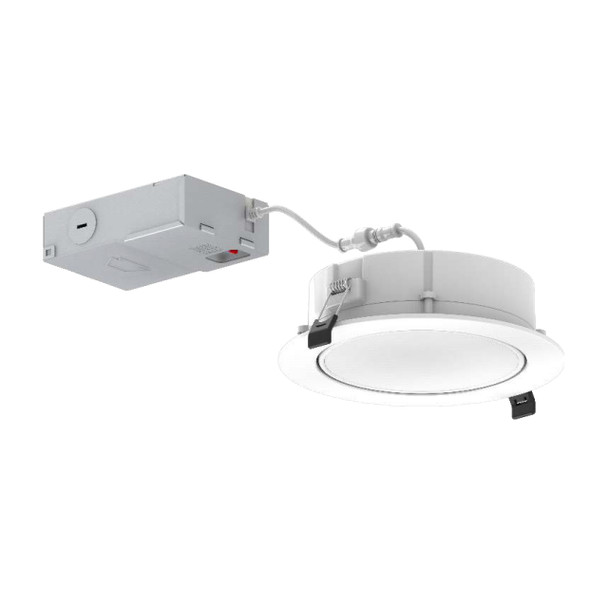

Circa features a remote Keystone LED dimming driver with a built-in junction box and quick disconnect, so there’s no need for a traditional multi-piece fixture setup.
Circa installs in minutes. There’s no need for a traditional, multi-piece fixture setup: just cut out your ceiling hole, remove the junction box knockouts, connect the wiring, attach the LED driver connection to the fixture housing, and you’re set. The shallow design makes it placement a snap, even in tight spaces.

Listings & Certifications

UL

logo of the Underwriters Laboratory

Energy Star

Energy Star logo

RoHS

logo of RoHS

Title 24

California Title 24 compliant logo
View AllClose

Warranty Information

Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called “Keystone Technologies”) warrants to the purchaser of its LED fixtures, retrofit kits, and light engines (hereinafter called “lighting components”) to be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for time periods outlined below and subject to the terms and conditions herein. This warranty applies to fixtures that are operated within usage limit, 8,760 hours per year for a total of 5 years. If fixtures fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement fixture (but no labor allowance) or issue a credit for future purchase. This warranty is not applicable if the lighting component is not installed in accordance with the National Electric Code, the Standards for Safety of Underwriters Laboratories, Inc., Standards for the American National Standards Institute, or the Canadian Standards Association. This warranty is also not applicable if the lighting component is not installed according to Keystone Technologies instructions or recommendations or if the product has been exposed to abnormal operating conditions including excessive temperatures. For more information please go to www.keystonetech.com
View AllClose

Additional Information

Manufacturer:
Keystone Technologies
Brand / Product Series:
Keystone
MPN:
KT-WDLED12-6A-9CSF-FDIM-G
Model:
KT-WDLED12-6A-9CSF-FDIM-G
Wattage:
12 Watt
Equivalent:
75 Watt
Lumens:
1050
Efficacy:
88 lumens / Watt
Color Temperature (CCT):
2700/3000/3500/4000/5000 Kelvin
Beam:
110°
Life Rating:
50,000 Hours
CRI:
90+
Size:
6 inch
Voltage:
120
Frequency:
N/A
Power Factor:
>0.90
Operating Temperature:
-22°F to 104°F
Dimmable:
Yes, 120V
Connection:
Remote Junction Box
Shape:
Round
Adjustable:
Gimbal
Housing Material:
N/A
Finish:
White
Lens Material:
Plastic
Trim Color:
White
Trim Design:
Smooth
IP Rating:
N/A
Location Rating:
Wet
Mounting:
Spring Clips
Length:
6.79 in.
Width:
6.79 in.
Height:
1.97 in.
UL:
Yes
ETL:
No
RoHS:
Yes
Energy Star:
Yes
Fire Rated:
No
FCC:
Yes
Air Tight:
Yes
NEC:
No
IC:
Yes
Title 20:
No
Title 24:
Yes
DLC:
No
DLC ID:
N/A
Warranty:
5-Year Manufacturer
