Keystone XFIT LED Linear High Bay - 270 Watt

40,770 Lumens - 12xT5HO Replacement - 5000K - 120-277 Volt - V-Hook Mount - KT-HBLED270-4F-850-VDIM-P /G2
(No reviews yet) Write a Review
SKU:27677
UPC:843654136813
MPN:KT-HBLED270-4F-850-VDIM-P /G2
Condition:New
Shipping:Free Shipping
    • Produces a bright daylight light with a 5000K color temperature.
    • Fixture comes with a v-hook and chain for mounting.
    • Architectural grade compact design only 2.4" in height.
    • Long-life, high-efficacy LEDs with a 50,000 life hour rating.
    • Excellent replacement for 12-lamp (T5HO) fluorescent fixtures.
    • 10-year, limited manufacturer warranty.

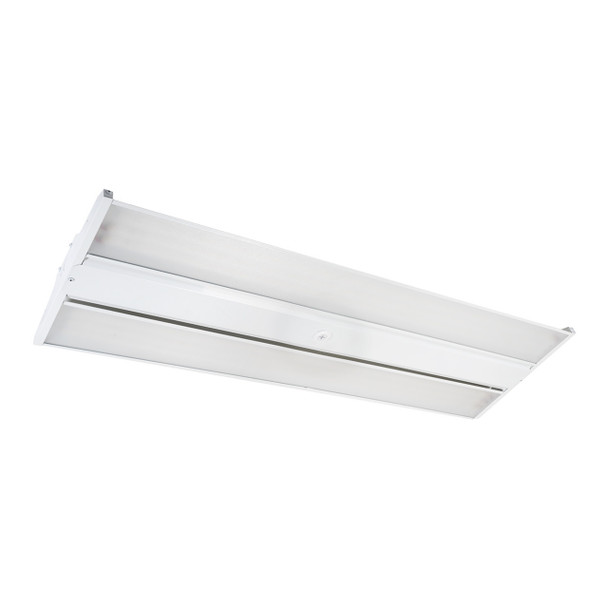

    • Keystone-KT-HBLED270-4F-850-VDIM-P-G2-image-01
    • Keystone-KT-HBLED270-4F-850-VDIM-P-G2-image-02
    $262.44
    Frequently bought together:

    Description

    Keystone’s XFit High Bay LED fixtures are renowned for energy efficiency, light uniformity, and long life. They’re ideal for replacing HID and linear fluorescent high bay lights, ensuring comfortable and safe conditions to maximize productivity in applications including commercial and manufacturing facilities, gymnasiums, warehouse lighting fixtures, and retail aisle. Keystone XFit Linear High Bays feature an architectural grade I-Beam design in which the driver channel is spaced away from the LEDs, allowing for better airflow and thermal management. This unique design contributes to a significantly longer lifespan and increased efficiency.

    Each fixture comes standard with a v-hook and chain for easy suspension mounting. Designed to accept easy screw-in installation of optional sensors via 1/2" threaded receptacle in driver cover.
    Durable metal housing with a white finish. Frosted lens for diffuse and even lighting. Rated lifespan of 50,000 hours backed by a 10-year limited manufacturer warranty.

    Listings & Certifications

    UL

    logo of the Underwriters Laboratory

    DLC

    DLC logo
    View AllClose

    Warranty Information

    View AllClose

    Additional Information

    View AllClose

    Specifications

    Manufacturer:
    Keystone Technologies
    Brand / Product Series:
    Keystone
    MPN:
    KT-HBLED270-4F-850-VDIM-P /G2
    Model:
    KT-HBLED270-4F-850-VDIM-P /G2
    Wattage:
    270 Watt
    Equivalent:
    12-Lamp (T5HO)
    Lumens:
    40770
    Efficacy:
    151 lumens / Watt
    Color Temperature (CCT):
    5000 Kelvin
    Life Rating:
    50,000 Hours
    CRI:
    80+
    Voltage:
    120/208/240/277
    Frequency:
    60 Hz
    Power Factor:
    >0.90
    THD:
    <20%
    Surge Protection:
    N/A
    Operating Temperature:
    -4°F to 122°F
    Dimmable:
    Yes, 0-10V
    Options:
    Standard
    Mounting:
    V-Hook and Chains
    Housing Material:
    Metal
    Finish:
    White
    Lens Material:
    PMMA
    IP Rating:
    N/A
    Location Rating:
    Damp
    Length:
    46.5 in.
    Width:
    15 in.
    Height:
    2.4 in
    Weight:
    N/A
    UL:
    Yes
    ETL:
    No
    RoHS:
    No
    Energy Star:
    No
    FCC:
    N/A
    DLC:
    Yes
    DLC ID:
    POY5EWIW
    Warranty:
    5-Year Manufacturer

    Warranty

    Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called “Keystone Technologies”) warrants to the purchaser of its LED fixtures, retrofit kits, and light engines (hereinafter called “lighting components”) to be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for time periods outlined below and subject to the terms and conditions herein. This warranty applies to fixtures that are operated within usage limit, 8,760 hours per year for a total of 5 years. If fixtures fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement fixture (but no labor allowance) or issue a credit for future purchase. This warranty is not applicable if the lighting component is not installed in accordance with the National Electric Code, the Standards for Safety of Underwriters Laboratories, Inc., Standards for the American National Standards Institute, or the Canadian Standards Association. This warranty is also not applicable if the lighting component is not installed according to Keystone Technologies instructions or recommendations or if the product has been exposed to abnormal operating conditions including excessive temperatures. For more information please go to www.keystonetech.com
