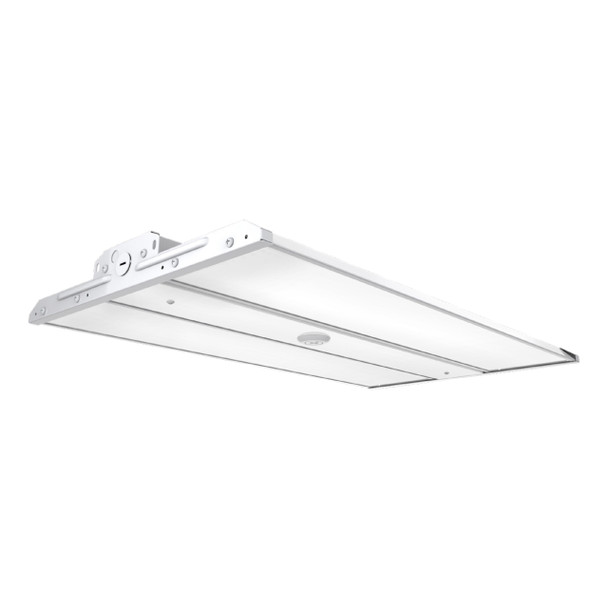

Keystone XFIT LED Linear High Bay - 135, 175 or 215 Watt | 30,600 Lumens - 750W MH Replacement - Tunable White - 120-277 Volt - V-Hook Mount - KT-HBLED215PS-2FB-8CSD-VDIM-P

(No reviews yet) Write a Review
SKU:
27676
UPC:
843654133652
MPN:
KT-HBLED215PS-2FB-8CSD-VDIM-P
Condition:
New
Shipping:
Calculated at Checkout
  • Keystone-KT-HBLED215PS-2FB-8CSD-VDIM-P-image-01
  • Keystone-KT-HBLED215PS-2FB-8CSD-VDIM-P-image-02
  • Keystone-KT-HBLED215PS-2FB-8CSD-VDIM-P-image-03
$178.69
Frequently bought together:

Description

  • Field adjustable power switch to select between 135W, 175W, and 215W outputs.
  • Comes with a field-adjustable CCT switch that allows you to choose between 4000K and 5000K color temperatures.
  • Fixture comes with a v-hook and chain for mounting.
  • Compact design only 1.89" in height.
  • Long-life, high-efficacy LEDs with a 50,000 life hour rating.
  • Excellent replacement for 6-lamp (T5HO), 8-lamp (T8) fluorescent, or 600 Watt HID fixtures.
  • 10-year, limited manufacturer warranty.

Keystone’s XFit High Bay LED fixtures are renowned for energy efficiency, light uniformity, and long life. They’re ideal for replacing HID and linear fluorescent high bay lights, ensuring comfortable and safe conditions to maximize productivity in applications including commercial and manufacturing facilities, gymnasiums, warehouse lighting fixtures, and retail aisle. Keystone XFit Linear High Bays feature an architectural grade I-Beam design in which the driver channel is spaced away from the LEDs, allowing for better airflow and thermal management. This unique design contributes to a significantly longer lifespan and increased efficiency. The XFit High Bay is now available with Keystone’s innovative Power Select and Color Select technologies. Power Select allows end-users to select among three field-adjustable lumen outputs; Color Select provides two color temperature selections, 4000K and 5000K. Both are changed with a simple switch. These flexible tools provide significant SKU reduction and increase flexibility and convenience when installing in the field.

Adjust the wattage of the fixture to optimize maximum brightness. Select between 135 watt, 175 watt, and 215 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 4000K cool white and 5000K daylight color temperatures.
Durable metal housing with a white finish. Frosted lens for diffuse and even lighting. Rated lifespan of 50,000 hours backed by a 10-year limited manufacturer warranty.

Listings & Certifications

UL

logo of the Underwriters Laboratory

DLC

DLC logo
View AllClose

Videos

View AllClose

Warranty Information

Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called “Keystone Technologies”) warrants to the purchaser of its LED fixtures, retrofit kits, and light engines (hereinafter called “lighting components”) to be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for time periods outlined below and subject to the terms and conditions herein. This warranty applies to fixtures that are operated within usage limit, 8,760 hours per year for a total of 5 years. If fixtures fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement fixture (but no labor allowance) or issue a credit for future purchase. This warranty is not applicable if the lighting component is not installed in accordance with the National Electric Code, the Standards for Safety of Underwriters Laboratories, Inc., Standards for the American National Standards Institute, or the Canadian Standards Association. This warranty is also not applicable if the lighting component is not installed according to Keystone Technologies instructions or recommendations or if the product has been exposed to abnormal operating conditions including excessive temperatures. For more information please go to www.keystonetech.com
View AllClose

Additional Information

Manufacturer:
Keystone Technologies
Brand:
Keystone
MPN:
KT-HBLED215PS-2FB-8CSD-VDIM-P
Model:
KT-HBLED215PS-2FB-8CSD-VDIM-P
Wattage:
135/175/215 Watt
Equivalent:
6-lamp (T5HO) / 8-lamp (T8) / 600 Watt Metal Halide
Lumens:
20,800-30,600
Efficacy:
142-155 lumens / Watt
Color Temperature (CCT):
4000/5000 Kelvin
Life Rating:
50,000 Hours
CRI:
80+
Voltage:
120/208/240/277
Frequency:
60 Hz
Power Factor:
>0.90
THD:
<20%
Surge Protection:
N/A
Operating Temperature:
-40°F to 122°F
Dimmable:
Yes, 0-10V
Options:
Standard
Mounting:
V-Hook and Chains
Housing Material:
Metal
Finish:
White
Lens Material:
Plastic
IP Rating:
N/A
Location Rating:
Damp
Length:
24.8 in.
Width:
11.81 in.
Height:
1.89 in.
Weight:
N/A
UL:
Yes
ETL:
No
RoHS:
No
Energy Star:
No
FCC:
N/A
DLC:
Yes
DLC ID:
PSBQQI1E
Warranty:
10-Year Manufacturer
