Description
- Produces a bright neutral white light at a 3500K color temperature.
- Ideal for offices, hallways, classrooms, and any other professional application.
- Dimmable by low voltage 0-10V standards.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Excellent replacement for 2-lamp 32 Watt (T8) fluorescent fixtures.
- 5-year, limited manufacturer warranty.

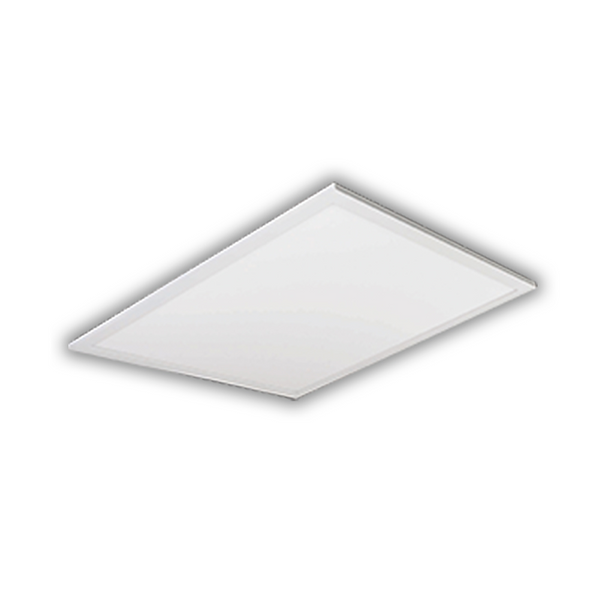

ProLED® Edge Lit Panel Series are a long life and energy efficient replacement for traditional lamps. Dimmable and easy to install, they deliver a maintenance-free experience with a 50,000-hour useful rated life. With its superior LED technology and performance, the Edge Lit Panel Series delivers consistent color, uniform illumination, and a long life for your lighting design.
Listings & Certifications
ETL
IP20
RoHS
DLC
Additional Information
Manufacturer: |
Halco Lighting Technologies |
Brand: |
ProLED |
MPN: |
81963 |
Model: |
22EPL30/835/LED |
Wattage: |
30 Watt |
Equivalent: |
2-lamp 32 Watt (T8) Watt |
Lumens: |
3000 |
Efficacy: |
100 lumens / Watt |
Color Temperature (CCT): |
3500 Kelvin |
Life Rating: |
50,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
N/A |
Dimmable: |
Yes, 0-10V |
Options: |
Standard |
Mounting: |
T-Grid |
Housing Material: |
Aluminum |
Finish: |
White |
Lens Material: |
Plastic |
IP Rating: |
IP20 |
Location Rating: |
Damp |
Size: |
2 x 2 |
Length: |
23.63 in. |
Width: |
23.63 in. |
Height: |
1.75 in. |
UL: |
No |
ETL: |
Yes |
RoHS: |
Yes |
Energy Star: |
No |
Fire Rated: |
No |
FCC: |
No |
Air Tight: |
No |
NEC: |
No |
IC: |
Yes |
Title 20: |
No |
Title 24: |
No |
DLC: |
Yes |
DLC ID: |
PL7UKS1Z4EVN |
Warranty: |
5-Year Manufacturer |
