Description
- Field adjustable power switch to select between 90W, 110W, and 130W outputs.
- Comes with a field-adjustable CCT switch that allows you to choose between 4000K and 5000K color temperatures.
- Fixture comes with a v-hook and chain for mounting.
- Compact design only 1.88" in height.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Excellent replacement for 4-lamp (T8) fluorescent or 250 Watt HID fixtures.
- 5-year, limited manufacturer warranty.

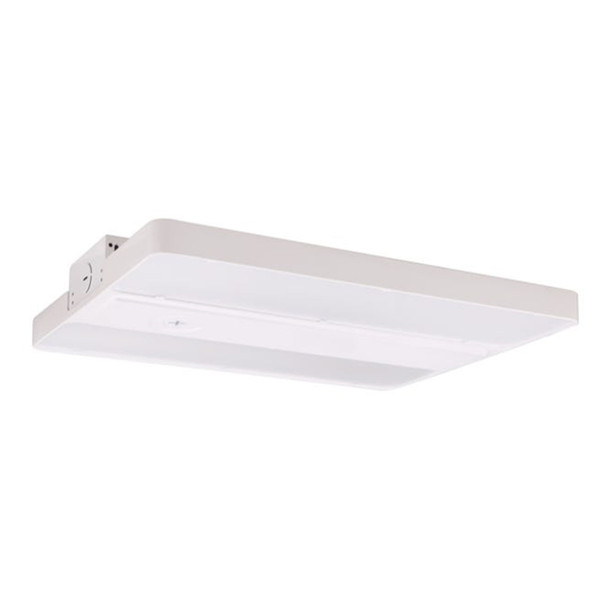

The Compact Linear High Bay (CLHB) is designed to meet the needs of the budget-conscious contractor. CLHB boasts robust performance in a smaller footprint to save space and cut down installation time. Designed with a durable die-cast aluminum housing and matte acrylic lens to eliminate glare, the CLHB is a reliable solution for light-duty industrial applications like warehouses, without sacrificing quality needed in retail stores, gymnasiums, and other large indoor spaces.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 90 watt, 110 watt, and 130 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 4000K cool white and 5000K daylight color temperatures.
Durable aluminum housing with a white finish. Acrylic lens for diffuse and even lighting. Rated lifespan of 50,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
UL
RoHS
IP20
DLC
Warranty Information
Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco fixtures will be free from defect in material and or workmanship from the date of installation for the (5) years.
View AllClose
Additional Information
Manufacturer: |
Halco Lighting Technologies |
Brand: |
ProLED |
MPN: |
36100 |
Model: |
CLHB-1-WS-CS-U |
Wattage: |
90/110/130 Watt |
Equivalent: |
4-lamp (T8) / 250 Watt Metal Halide |
Lumens: |
12,010-17,588 |
Efficacy: |
134-137 lumens / Watt |
Color Temperature (CCT): |
4000/5000 Kelvin |
Life Rating: |
50,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
N/A |
Surge Protection: |
N/A |
Dimmable: |
Yes, 0-10V |
Options: |
Standard |
Mounting: |
V-Hook and Chains |
Housing Material: |
Aluminum |
Finish: |
White |
Lens Material: |
Acrylic |
IP Rating: |
IP20 |
Location Rating: |
Damp |
Length: |
14.19 in. |
Width: |
11.04 in. |
Height: |
1.88 in. |
Weight: |
5.73 lbs |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
Yes |
DLC: |
Yes |
DLC ID: |
S-PK96QJ |
Warranty: |
5-Year Manufacturer |
