Halco 30283 LED Linear High Bay - 110, 135 or 160 Watt

21,600 Lumens - 5000K - 120-277 Volt - V-Hook Mount - LHB-2-WS-50-U
(No reviews yet) Write a Review
SKU:27671
UPC:807154302833
MPN:30283
Condition:New
Shipping:Free Shipping
    • Field adjustable power switch to select between 110W, 135W, and 160W outputs.
    • Produces a bright daylight light with a 5000K color temperature.
    • Fixture comes with a v-hook and chain for mounting.
    • Built in 6kV surge protection.
    • Long-life, high-efficacy LEDs with a 100,000 life hour rating.
    • Excellent replacement for 4-lamp (T5HO) fluorescent, 6-lamp (T8) fluorescent, or 400 Watt HID fixtures.
    • 5-year, limited manufacturer warranty.

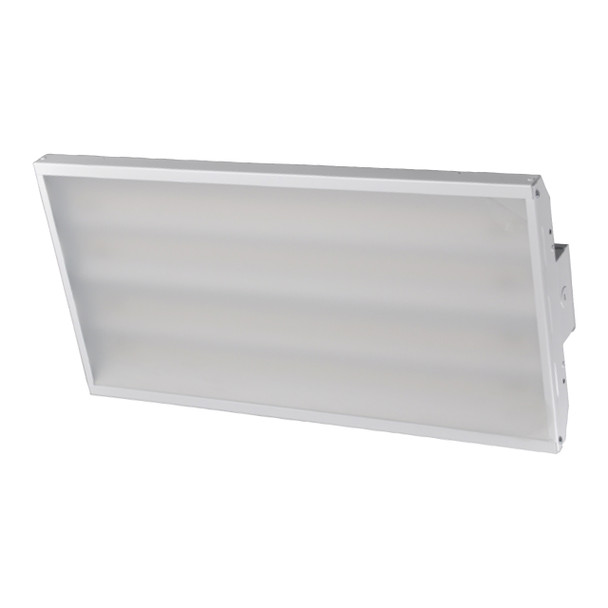

    • Halco-30283-LHB-2-WS-50-U-image-01
    • Halco-30283-LHB-2-WS-50-U-image-02
    This item is currently on backorder. Please call for availability 1-844-357-8897.
    Frequently bought together:

    Description

    The ProLED Select Linear High Bay Series is a long life and energy efficient replacement for existing linear fluorescent or HID installations. Ideal for highbay mounting heights, the ProLED Select Linear HighBay delivers instant-on capabilities, uniform illumination, and reduced maintenance costs. Meeting specified lumen levels is simple with ProLED Select wattage selectability. The ProLED Select LHB offers 11 different lumen packages in only 4 SKUs. Applications include warehouse industrial store retail or gym ceiling lighting.

    Adjust the wattage of the fixture to optimize maximum brightness. Select between 110 watt, 135 watt, and 160 watt settings. Can be dimmed down for further control with 0-10V dimming.
    Durable steel housing with a white finish. Polycarbonate frosted lens for diffuse and even lighting. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.

    Listings & Certifications

    UL

    logo of the Underwriters Laboratory

    RoHS

    logo of RoHS

    DLC

    DLC logo
    View AllClose

    Warranty Information

    View AllClose

    Additional Information

    View AllClose

    Specifications

    Manufacturer:
    Halco Lighting Technologies
    Brand / Product Series:
    ProLED
    MPN:
    30283
    Model:
    LHB-2-WS-50-U
    Wattage:
    110/135/160 Watt
    Equivalent:
    4-lamp (T5HO) / 6-lamp (T8) / 400 Watt Metal Halide
    Lumens:
    15,400-21,600
    Efficacy:
    135-140 lumens / Watt
    Color Temperature (CCT):
    5000 Kelvin
    Life Rating:
    100,000 Hours
    CRI:
    80+
    Voltage:
    120/208/240/277
    Frequency:
    50/60 Hz
    Power Factor:
    >0.90
    THD:
    N/A
    Surge Protection:
    6kV
    Operating Temperature:
    -40°F to 131°F
    Dimmable:
    Yes, 0-10V
    Options:
    Standard
    Mounting:
    V-Hook and Chains
    Housing Material:
    Steel
    Finish:
    White
    Lens Material:
    Polycarbonate
    IP Rating:
    N/A
    Location Rating:
    Damp
    Length:
    24.6 in.
    Width:
    12.6 in.
    Height:
    3.6 in.
    Weight:
    16 lbs
    UL:
    Yes
    ETL:
    No
    RoHS:
    Yes
    Energy Star:
    No
    FCC:
    Yes
    DLC:
    Yes
    DLC ID:
    PLGFVWVKC19G
    Warranty:
    5-Year Manufacturer

    Warranty

    Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco lamps will be free from defect in material and or workmanship from the date of installation for (5) years based on the product's L70 rated life.
